Electrical cabinet heater

electriccustomfor enclosures

Overview

• Instant and efficient localized heating
• Wide range of standard diameters and temperature-rise references
• Ultra-thin, flexible and easy to integrate
• Certifications for industrial applications
• Compact design with standard lead length

Product description

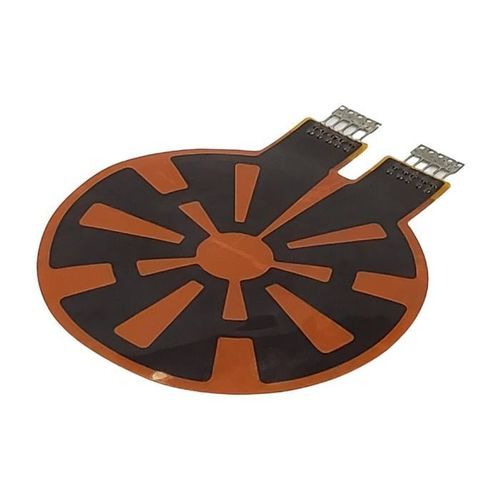

KLC Corporation provides an extensive library of ultra-thin round flexible heaters in a standard series for industrial and electronic applications. These 120V round heaters are available across multiple diameters and ΔT references and are suitable for AC or DC supply. For proof-of-concept testing, select the closest standard model before requesting a custom design. Standard lead wire length: 200 mm (20 cm) unless otherwise specified.

Available standard round types (examples)

• Standard 3V round flexible heaters (battery powered)
• Standard 5V round flexible heaters (USB powered)
• Standard 12V round flexible heaters (both AC/DC use)
• Standard 24V round flexible heaters (both AC/DC use)
• Standard 110V round flexible heaters (both AC/DC use)
• Standard 120V round flexible heaters (both AC/DC use)
• Standard 220V round flexible heaters (both AC/DC use)
• Standard 230V round flexible heaters (both AC/DC use)
• Standard 240V round flexible heaters (both AC/DC use)
• Other standard round flexible heaters

Notes

• The “Temperature Rise” value is for reference only; actual temperature rise depends on ambient conditions and application.
• Use clamping installation when power density (W/cm2) is greater than 0.8 W/cm2.
• For standard round heaters the outer diameter (A) must be greater than the inner diameter (B).

Standard Flexible Heaters – Round 120V — Data table (header + first 20 rows)
Item | Model ID | Outer Diameter (mm) | Inner Diameter (mm) | Temperature Rise Reference (℃) | Wattage Density (W/cm2) | Wattage (W) | Resistance (Ω) | Current (A)
1 | TSC010d000CR70500 | 10 | 0 | 30 | 0.25 | 0.2 | 70500 | 0.002
2 | TSC010d000CR33400 | 10 | 0 | 60 | 0.55 | 0.43 | 33400 | 0.004
3 | TSC010d000CR21000 | 10 | 0 | 90 | 0.88 | 0.69 | 21000 | 0.006
4 | TSC010d000CR15800 | 10 | 0 | 120 | 1.16 | 0.91 | 15800 | 0.008
5 | TSC010d000CR11900 | 10 | 0 | 150 | 1.54 | 1.21 | 11900 | 0.01
6 | TSC010d000CR9410 | 10 | 0 | 180 | 1.95 | 1.53 | 9410 | 0.013
7 | TSC010d000CR7470 | 10 | 0 | 210 | 2.46 | 1.93 | 7470 | 0.016
8 | TSC010d005CR44600 | 10 | 5 | 60 | 0.54 | 0.32 | 44600 | 0.003
9 | TSC010d005CR28000 | 10 | 5 | 90 | 0.87 | 0.51 | 28000 | 0.004
10 | TSC010d005CR21000 | 10 | 5 | 120 | 1.17 | 0.69 | 21000 | 0.006
11 | TSC010d005CR15800 | 10 | 5 | 150 | 1.54 | 0.91 | 15800 | 0.008
12 | TSC010d005CR12600 | 10 | 5 | 180 | 1.94 | 1.14 | 12600 | 0.01
13 | TSC010d005CR10000 | 10 | 5 | 210 | 2.44 | 1.44 | 10000 | 0.012
14 | TSC013d000CR47200 | 13 | 0 | 30 | 0.23 | 0.31 | 47200 | 0.003
15 | TSC013d000CR23500 | 13 | 0 | 60 | 0.46 | 0.61 | 23500 | 0.005
16 | TSC013d000CR14100 | 13 | 0 | 90 | 0.77 | 1.02 | 14100 | 0.009
17 | TSC013d000CR10600 | 13 | 0 | 120 | 1.02 | 1.36 | 10600 | 0.011
18 | TSC013d000CR7910 | 13 | 0 | 150 | 1.37 | 1.82 | 7910 | 0.015
19 | TSC013d000CR6290 | 13 | 0 | 180 | 1.73 | 2.29 | 6290 | 0.019
20 | TSC013d000CR5300 | 13 | 0 | 210 | 2.05 | 2.72 | 5300 | 0.023


Technical specifications

• Brand: KLC Corporation (KLC)
• Product family: Ultra-thin round flexible heaters (standard series)
• Typical material thickness: approximately 0.09–0.22 mm
• Minimum bending radius: ≥ 0.5 mm
• Operating capability: referenced performance from very low temperatures up to approximately 250 ℃
• Patents: invention patents indicated for Taiwan, mainland China and US
• Regulatory / standards compliance: REACH, RoHS; many standard items are cUL / UL and CE recognized (cUL file E315621 and CE/IEC references cited)
• Standard lead wire length: 200 mm (20 cm) (custom lengths available on request)
• Installation recommendation: clamping advised if power density > 0.8 W/cm2
• Table columns available: Model ID, Outer Diameter (mm), Inner Diameter (mm), Temperature Rise Reference (℃), Wattage Density (W/cm2), Wattage (W), Resistance (Ω), Current (A)
