Conventional lathe TSL-550
horizontal2-axisflatbed

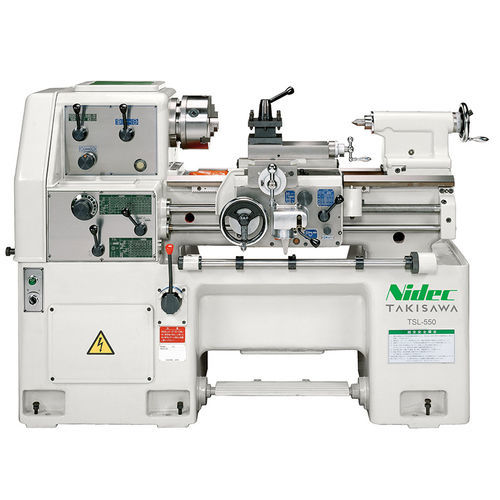

Conventional lathe - TSL-550 - TAKISAWA - horizontal / 2-axis / flatbed
Conventional lathe - TSL-550 - TAKISAWA - horizontal / 2-axis / flatbed
Add to favorites
Compare this product

Characteristics

Control type
conventional
Spindle orientation
horizontal
Number of axes
2-axis
Structure
flatbed
Drive system
backgear
Applications
for metal
Other characteristics
with position indicator
Associated function
threading
Diameter

210 mm, 360 mm
(8.27 in, 14.17 in)

Spindle speed

Min.: 70 rpm
(439.823 rad.min-1)

Max.: 2,000 rpm
(12,566.371 rad.min-1)

Maximum part length

550 mm
(22 in)

Nominal power

2.2 kW, 3.7 kW
(3 hp, 5 hp)

Overall lenght

725 mm
(29 in)

Overall width

1,622 mm
(64 in)

Overall height

1,101 mm
(43 in)

Weight

950 kg
(2,094 lb)

Description

The TSL-550 is a manual lathe by Takisawa Machine Tool Co., Ltd. designed for educational machining training.

Standard accessories
  • Automatic longitudinal feed stop bar (standard).
  • Simple selection of feeds and threads.
  • Start lever designed to operate only when pulled to ensure safety.
  • Foot brake included.
  • Axial scale collar provided.


Main specifications
  • Swing over bed: 360 mm
  • Swing over cross slide: 210 mm
  • Turning length (between centers): 550 mm
  • Spindle speed range: 83–1800 (OP. 70–1500, 92–2000)
  • Number of speed changes: 6
  • Spindle motor: 2.2 kW (OP. 3.7 kW)
  • Range of metric threads: 24 / 0.5–14 (type/mm)
  • Range of inch threads: 31 / 2–56 (type/TPI)
  • Number of longitudinal feeds: 36
  • Longitudinal feed range: 0.041–2.22 mm/rev.
  • Cross feeds: 1/2 of longitudinal feeds
  • Machine height: 1101 mm
  • Floor space (depth): 725 mm
  • Floor space (width): 1622 mm
  • Machine weight: 950 kg


Technical data
  • Model: TSL-550
  • Brand: Takisawa Machine Tool Co., Ltd.
  • Intended use: Educational machining training (basic to advanced turning skills)
