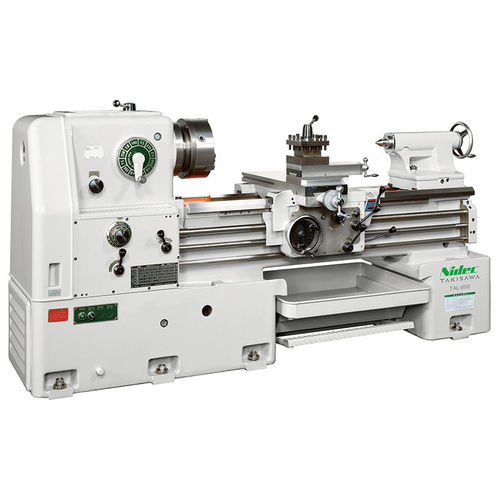

Conventional lathe TAL-600horizontal12 toolsthreading
Add to favorites
Compare this product
Characteristics
- Control type
- conventional
- Spindle orientation
- horizontal
- Number of tool stations
- 12 tools
- Associated function
- threading, finishing, grooving
- Diameter
380 mm, 600 mm
(14.96 in, 23.62 in)- Spindle speed
Min.: 25 rpm
(157.08 rad.min-1)Max.: 1,500 rpm
(9,424.778 rad.min-1)- Maximum part length
1,000 mm, 1,500 mm, 2,000 mm, 3,000 mm
(39 in, 59 in, 79 in, 118 in)- Nominal power
7.5 kW
(10.2 hp)- Overall lenght
1,055 mm
(42 in)- Overall width
2,703 mm, 3,203 mm, 3,713 mm, 4,733 mm
(106 in, 126 in, 146 in, 186 in)- Overall height
1,340 mm
(53 in)- Weight
2,900 kg, 3,200 kg, 3,600 kg, 4,300 kg
(6,393 lb, 7,055 lb, 7,937 lb, 9,480 lb)
Description
Overview
Key specifications
Training and safety features
Footprint, options and configuration
Applications
Ordering information
- The TAL-600 is an engine lathe from the TAL series designed for vocational and educational machining training, suitable for learning basic and advanced turning operations.
- The machine includes multiple safety devices to protect operators and prevent mechanical damage.
Key specifications
- Swing over bed (maximum turning diameter): 600 mm
- Swing over cross slide: 380 mm
- Turning length (between centers): 1000 / 1500 / 2000 / 3000 mm
- Spindle speed range: 25–1500 min-1
- Number of speed steps: 12
- Spindle motor: 7.5 kW
- Metric thread range: 29 / 0.5–14 mm
- Inch thread range: 40 / 2–56 TPI
- Number of longitudinal feeds: 40
- Longitudinal feed range: 0.071–1.99 mm/rev
- Cross feeds: 1/2 of longitudinal feeds
- Machine height: 1340 mm
- Floor depth required: 1055 mm
- Floor width required: 2703 / 3203 / 3713 / 4733 mm (depending on turning length)
- Machine weight: 2900 / 3200 / 3600 / 4300 kg (depending on configuration)
Training and safety features
- Designed for hands-on instruction of turning, threading and facing operations.
- Equipped with protective guards and safety interlocks to reduce risk of injury and prevent mechanical breakage.
- Controls and feed selection suited to learning environments with clear, repeatable settings.
Footprint, options and configuration
- Available in multiple bed lengths to suit workshop space and training requirements.
- Floor space and weight vary by chosen turning length; check exact dimensions when planning installation.
- Optional accessories and tooling packages available on request to support specific training curricula.
Applications
- Vocational and technical school labs
- Operator skill development: turning, threading, grooving
- Maintenance and process training for industrial workshops
Ordering information
- Specify required turning length and any accessory packages when requesting a quote.
- Contact your distributor for delivery, installation and spare parts support.
