Conventional lathe TSL-800
horizontal2-axisfor metal

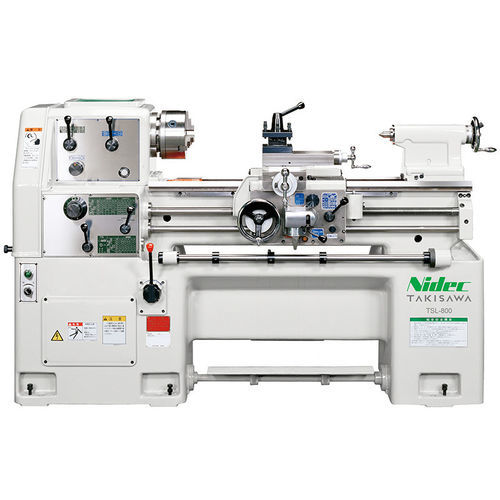

Conventional lathe - TSL-800 - TAKISAWA - horizontal / 2-axis / for metal
Conventional lathe - TSL-800 - TAKISAWA - horizontal / 2-axis / for metal
Add to favorites
Compare this product

Characteristics

Control type
conventional
Spindle orientation
horizontal
Number of axes
2-axis
Applications
for metal
Other characteristics
with position indicator
Diameter

210 mm, 360 mm
(8.27 in, 14.17 in)

Spindle speed

Max.: 2,000 rpm
(12,566.371 rad.min-1)

Min.: 70 rpm
(439.823 rad.min-1)

Maximum part length

800 mm
(31 in)

Axe X

Max.: 210 mm
(8 in)

Min.: 210 mm
(8 in)

Axe Z

Max.: 800 mm
(31 in)

Min.: 800 mm
(31 in)

Nominal power

2.2 kW, 3.7 kW
(3 hp, 5 hp)

Overall lenght

725 mm
(29 in)

Overall width

1,872 mm
(74 in)

Overall height

1,101 mm
(43 in)

Weight

1,100 kg
(2,425 lb)

Description

The Takisawa TSL-800 is a manual lathe from the TSL/TAL series designed for machining training and educational workshops. It is suitable for learning basic and advanced turning operations, with safety-focused controls and practical accessories to support hands-on training.

Standard accessory
  • Automatic longitudinal feed stop bar is standard equipment.
  • Easy selection of feeds and threads.
  • The start lever is designed so it will not operate unless pulled, ensuring operator safety.
  • Foot brake is provided.
  • Axial scale collar is provided.


Features / Technical specifications
  • Swing Over Bed: 360 mm
  • Swing Over Cross Slide: 210 mm
  • Turning Length (between centers): 800 mm
  • Spindle Speed Range: 83–1800 [OP. 70–1500, 92–2000] rpm
  • Number of Speed Changes: 6
  • Spindle Motor: 2.2 kW [OP. 3.7]
  • Range of Metric Thread: 24 / 0.5–14 (type/mm)
  • Range of Inch Threads: 31 / 2–56 (type/TPI)
  • Longitudinal Feeds, Number: 36
  • Longitudinal Feeds, Range: 0.041–2.22 mm/rev
  • Cross Feeds: 1/2 of longitudinal feeds (mm/rev)
  • Machine Height: 1101 mm
  • Floor Space Required (Depth): 725 mm
  • Floor Space Required (Width): 1872 mm
  • Machine Weight: 1100 kg
