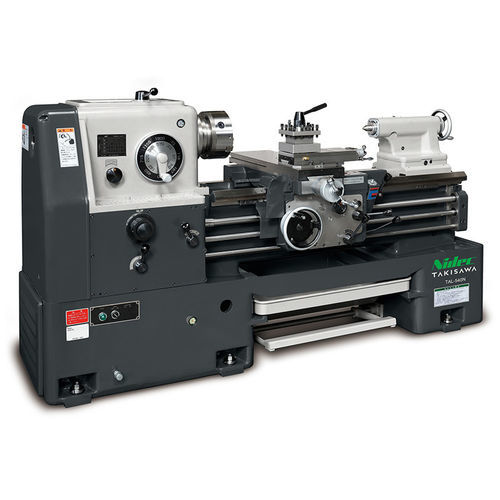

Conventional lathe TAL-540N

horizontalfor production linesheavy-duty

Overview
The TAL-540N is a standard manual lathe engineered with modern design principles to deliver high rigidity and stable heavy-duty cutting. It incorporates a wide bed, a low center of gravity, a robust headstock with large bearing diameters and a 16-step speed change system to support accurate machining under load.

Key features

• Wide, highly rigid bed and carriage with low center of gravity for enhanced stability
• Headstock with large bearing diameter and 16-step speed-change system for stable heavy-duty cutting
• Flexible spindle speed ranges with optional higher-speed configurations (23–1800, 25–2000 min-1)
• 5.5 kW spindle motor suitable for continuous industrial turning

Technical specifications

• Swing over bed: 540 mm
• Swing over cross slide: 270 mm
• Turning length (between centers): 800 mm
• Spindle speed range: 19–1500 min-1 (optional: 23–1800, 25–2000)
• Number of speed changes: 16
• Spindle motor: 5.5 kW
• Metric thread range (type/mm): 21/0.5–7
• Number of longitudinal feeds: 32
• Longitudinal feed range: 0.05–0.70 mm/rev
• Cross feed range: 0.025–0.35 mm/rev
• Machine height: 1275 mm
• Floor space required (depth): 1004 mm
• Floor space required (width): 2337 mm
• Machine weight: 2150 kg

Applications

• General-purpose turning, heavy-duty machining and repetitive production tasks in industrial workshops
• Suitable for production lines, maintenance departments and vocational training facilities
