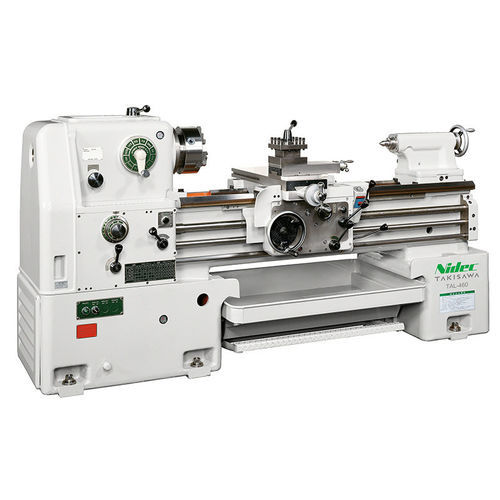

Conventional lathe TAL-460

horizontalcompactthreading

The TAL-460 is a training lathe from Takisawa's TAL-Series designed for machining education and practical skills development. It is suitable for both basic and advanced training and incorporates safeguards to protect operators and prevent mechanical damage.

Technical specifications

• Swing Over Bed: 460 mm
• Swing Over Cross Slide: 250 mm
• Turning Length: 800 / 1000 mm
• Spindle Speed Range: 25–1500 min⁻¹
• Number of Speed Changes: 12
• Spindle Motor: 3.7 kW
• Range of Metric Thread (Type/mm): 21/0.5–7
• Range of Inch Threads (Type/TPI): 32/4–56
• Longitudinal Feeds, Number: 24
• Longitudinal Feeds, Range: 0.071–0.5 mm/rev.
• Cross Feeds: 1/2 of Longitudinal Feeds
• Machine Height: 1223 mm
• Floor Space Required (Depth): 1042 mm
• Floor Space Required (Width): 2274 / 2474 mm
• Machine Weight: 1950 / 2000 kg

Applications and safety

• Designed for vocational schools, technical colleges and in-company training workshops to teach turning operations and threading.
• Multiple safety devices and protective measures reduce risk during student use and protect the machine from misuse.
• Configuration supports both metric and inch thread training and a wide range of feeds and speeds for progressive skill development.
• Compact footprint and defined floor space figures facilitate classroom and workshop planning.
• Options and accessories (steady rests, chucks, tool holders, measuring aids) can be selected to match curriculum requirements.
