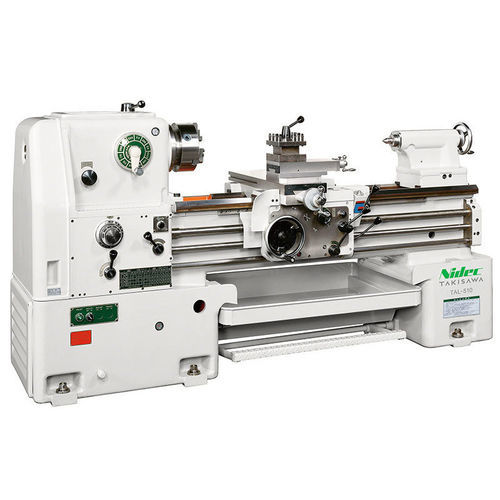

Conventional lathe TAL-510
horizontal12 toolscompact

Conventional lathe - TAL-510 - TAKISAWA - horizontal / 12 tools / compact
Conventional lathe - TAL-510 - TAKISAWA - horizontal / 12 tools / compact
Add to favorites
Compare this product

Characteristics

Control type
conventional
Spindle orientation
horizontal
Number of tool stations
12 tools
Other characteristics
compact
Associated function
threading
Diameter

300 mm, 510 mm
(11.81 in, 20.08 in)

Spindle speed

Max.: 1,500 rpm
(9,424.778 rad.min-1)

Min.: 25 rpm
(157.08 rad.min-1)

Maximum part length

1,000 mm, 1,500 mm
(39 in, 59 in)

Maximum cutting diameter

Max.: 510 mm
(20 in)

Min.: 510 mm
(20 in)

Nominal power

5.5 kW
(7.5 hp)

Overall lenght

1,042 mm
(41 in)

Overall width

2,468 mm, 2,978 mm
(97 in, 117 in)

Overall height

1,250 mm
(49 in)

Weight

2,300 kg, 2,600 kg
(5,071 lb, 5,732 lb)

Description

Overview
The Takisawa TAL-510 is an educational lathe designed for acquiring basic and advanced machining skills. The machine is fitted with multiple safety devices to protect operators and prevent mechanical damage. Suitable for vocational schools, training centres and teaching workshops.

Technical specifications
  • Swing Over Bed: 510 mm
  • Swing Over Cross Slide: 300 mm
  • Turning Length: 1000 / 1500 mm
  • Spindle Speed Range: 25–1500 min-1
  • Number of Speed Changes: 12
  • Spindle Motor: 5.5 kW
  • Range of Metric Thread: 21 types / 0.5–7 mm
  • Range of Inch Threads: 32 types / 4–56 TPI
  • Longitudinal Feeds, Number: 24
  • Longitudinal Feeds, Range: 0.071–0.5 mm/rev
  • Cross Feeds: 1/2 of Longitudinal Feeds
  • Machine Height: 1250 mm
  • Floor Space Required (Depth): 1042 mm
  • Floor Space Required (Width): 2468 / 2978 mm
  • Machine Weight: 2300 / 2600 kg


Features and applications
  • Designed for hands-on training and development of turning and threading skills
  • Supports both metric and inch threading standards for practical exercises
  • Compact footprint suited to training facilities and classrooms
  • Accessible layout facilitating instruction and routine maintenance


Manufacturer data
  • Model: TAL-510
  • Brand: Takisawa
  • Application: Educational machining training
  • Spindle power: 5.5 kW
