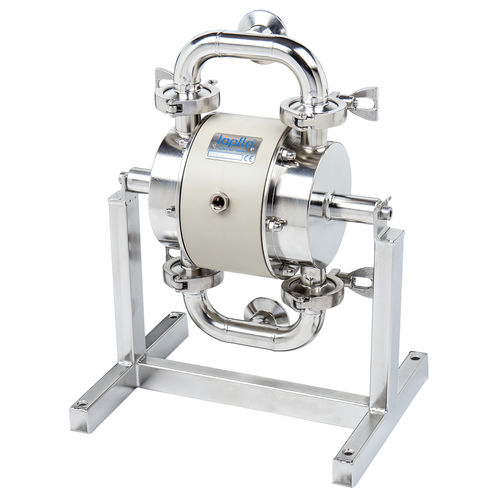

Double-diaphragm pump T80

for food productsindustrialfor the food industry

Type: - T 80 Atex/FDA: - TX 80 (ATEX), FDA Material: - PTFE, PTFE with white back, EPDM, white EPDM, white NBR m3/h; l/min: a max capacity of 78 l/min. Spheres to use: • - Dairy products: Milk, cream, yogurt, cream cheese, melted cheese • - Grossery: Ketchup, mayonnaise, tomato products, mustard • - Beverages: Flavours, colouring, fruit juice • - Bakery: Dough, ingredients • - Brewery: Beer, flavours, colouring, wort • - Hygiene: Soap, toothpaste, schampoo • - Cosmetics: Cream, alcohol, perfume Possible sizes: - T30, T80, T125, T225, T425, T825 Temperature max: - +110 C Pressure: - 8 bar Description: T80 and ATEX approved TX80 is a mid sized sanitary pump for various transfer, filling and emptying applications in food- and pharmaceutical industries. The Tapflo sanitary series is particularly designed to meet the requirements of the food, beverage, pharmaceutical and cosmetic industries. Lubrication free air distribution system, maintenance free ball check valve system and total visual inspection of the wetted parts are some of the major features for this pump series. The materials used on certain models comply with the FDA guidelines. Models with extra fine surface finish Ra < 0.8 and Ra < 0.5 are available upon request. Motor, kW - No motor in construction Dimensions: - 290 × 295 × 396 mm
