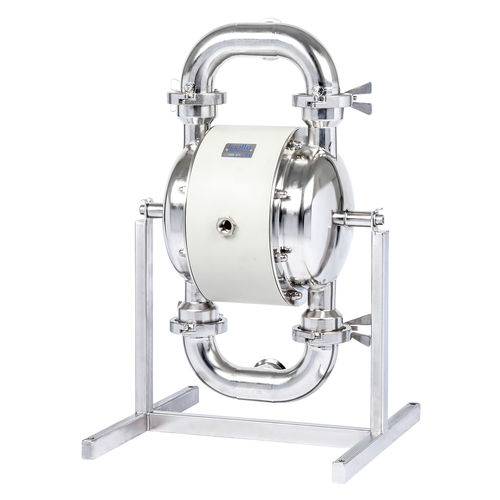

Food product pump T225

double-diaphragmfor the food and beverage industryfor the pharmaceutical industry

Type: - T 225 Atex/FDA: - TX225 ATEX aprroved Material: - AISI 316 m3/h; l/min: - a max capacity of 330 l/min. Spheres to use: - • Dairy products: Milk, cream, yogurt, cream cheese, melted cheese • - Grossery: Ketchup, mayonnaise, tomato products, mustard • - Beverages: Flavours, colouring, fruit juice • - Bakery: Dough, ingredients • - Brewery: Beer, flavours, colouring, wort • - Hygiene: Soap, toothpaste, schampoo • - Cosmetics: Cream, alcohol, perfume Possible sizes: - T30, T80, T125, T225, T425, T825 Temperature max: - +110 C Pressure: - 8 bar Description: - It is the second biggest in the range of sanitary pumps for various transfer The Tapflo sanitary series is particularly designed to meet the requirements of the food, beverage, pharmaceutical and cosmetic industries. Lubrication free air distribution system, maintenance free ball check valve system and total visual inspection of the wetted parts are some of the major features for this pump series. The materials used on certain models comply with the FDA guidelines. Models with extra fine surface finish Ra < 0.8 and Ra < 0.5 are available upon request. Motor, kW - No motor in construction Dimensions: - 360×420×639 mm
