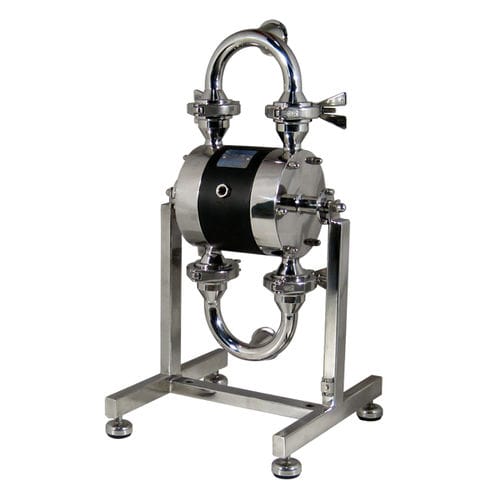

Food product pump TX144 EHEDGair-drivendiaphragmindustrial
Add to favorites
Compare this product
Characteristics
- Fluid
- for food products
- Operation
- air-driven
- Technology
- diaphragm
- Domain
- industrial, for the food industry, for the pharmaceutical industry, for the biotechnology industry
- Applications
- process, service
- Protection level
- ATEX
- Flow
Max.: 144 l/min
(38.04078 us gal/min)Min.: 0 l/min
(0 us gal/min)- Pressure
8 bar
(116.03 psi)
Description
Type: - TX 144
Atex/FDA: - TX 144 (ATEX), FDA
Material: - Aluminium, cast iron, AISI 316
m3/h; l/min: a max capacity of 144 l/min.
Spheres to use: -
• - Food & dairy: Soup, cream, syrup, dairy products, flavoring, alcohol, chocolate, paste
• - Pharmaceutics & cosmetics: Cream, paste, alcohol and filtration gel
Possible sizes: - TX94, TX144, TX244, TX444
Temperature max: - +110 C
Pressure: - 8 bar
Description: - Aseptic series pumps are designed for service in pharmaceutic-, biotech- and food industries where a clean process is the key.
Tapflo Aseptic series is EHEDG certified, has FDA approved materials and conform to the ATEX directive 94/9/EG
Motor, kW - No motor in construction
