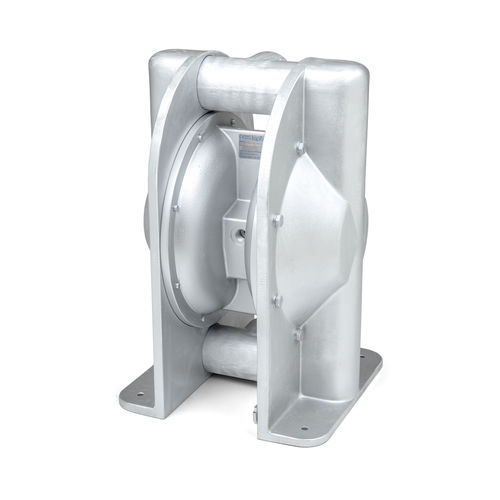

Water pump T420
for chemicalsoilair-driven

water pump
water pump
Add to favorites
Compare this product


Characteristics

Fluid
water, for chemicals, oil
Operation
air-driven
Technology
double-diaphragm
Domain
industrial, chemical, for the mining industry, for the construction industry, for the printing industry
Applications
for transfer
Material
stainless steel, cast iron, polypropylene
Protection level
ATEX
Other characteristics
mechanical, standard
Flow

Min.: 0 l/min
(0 us gal/min)

Max.: 570 l/min
(150.57807 us gal/min)

Pressure

8 bar
(116.03 psi)

Description

Type: - T 420 Atex/FDA: - TX 420 (ATEX) Material: - Aluminium, cast iron, AISI 316 m3/h; l/min: a max capacity of 570 l/min. Spheres to use: - • - Workshop: Oil, fat, solvents, water, cooling fluid, lubricants • - Print & paint: Glue, additives, varnish, ink, paint, latex, acid, resins, pigments • - Mining & construction: Adhesives, sump, dewatering, coal sludge, pastes • - Ceramic industry: Abrasives, glaze, water, enamels, clay • - Chemistry: Acids, alkalis, alcohol, solvents, latex, emulsions Possible sizes: - T25, T70, T120, T220, T420, T820 Temperature max: - +110 C Pressure: - 8 bar Description: - Aluminium and cast iron pumps For transfer of pH-neutral fluids, both thin, thick, high solid content or abrasive. The aluminium and cast iron pumps are found in most fields; workshop and paint industries, purifying plants etc., to mention only a few. AISI 316 stainless steel pumps Made in lost wax cast method, ensuring great accuracy and finish. The stainless steel pumps combine great mechanical strength with good chemical features. AISI 316 is resistant to aggressive liquids like nitric acid and sodium hydroxide. The centre block, which is not in contact with liquid, is made from corrosive resistant polypropylene (PP) as standard (other materials upon request). Motor, kW - No motor in construction Dimensions: - 350 × 342 ×537 mm
