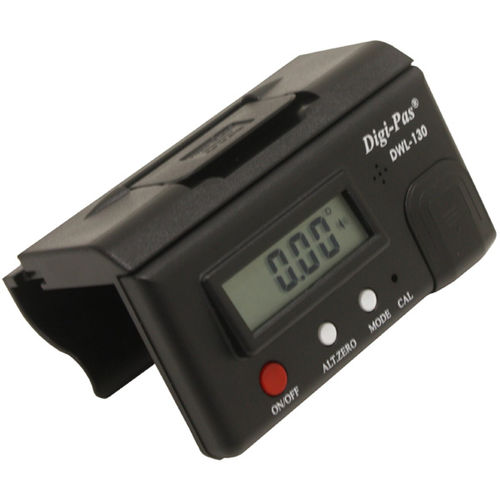

The DWL-130 module having a resolution of 0.05° & alternate zero feature is designed to be attached very conveniently onto every traditional Spirits Level and it can INSTANTLY convert these Spirit Levels to accurate Digital Levels.
These modules can easily CLIP ON to various Length & Width of any Spirit Levels commonly available.
Once Clipped on to a Sprit Level, simply proceed to perform a 'User Self-Calibration' function. The intelligent MEMS sensor automatically detects & aligns the base of the spirit level and turns it becomes a precision digital level.
• Measuring Range from 0° ~ 90°; 4 x 90° (360°)
• Resolution of 0.05° (1.0 mm/M)
• Accuracy of ±0.05° at 0° & 90°
±0.2° at 1° ~ 89°
•Adjustable Clip on design (patented)
•Alternate Zero feature
•Digital display of angle in °(Degree), %(slope), mm/M & In/Ft
•Auto-reverse reading of LCD display
•2 X CR2032 3V cell batteries
• Digital display for all Angle
• Precise, speedy & reliable measurements
• High accuracy can be maintained by user. Simply self- calibrate the module whenever needed.
• Enable user great convenient to INSTANTLY convert spirit level to digital level.
• Audible sound can assist user to simply hear sound when levelling reached.
