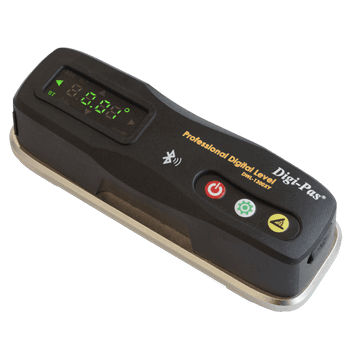

Precision level DWL-1300XY

digital

Digi-Pas DWL-1300XY is an AFFORDABLE Wireless-Bluetooth, Dual-Axis Precision Digital Level of 0.01° resolution designed for industrial users & professionals. This 2-axis SMART Digital Level replaces old-fashioned VIAL levels. Users read both X & Y axis levelling measurements wirelessly in proximity via Bluetooth, which effectively cut down installation & setup time effortlessly (ONE-MAN operation) for precision machines & equipment, especially when used in conjunction with Digi-Pas Machinist Level Mobile App with user’s smartphone (optional purchase available for Apple & Android App Stores). Digi-Pas Precision Digital Level is highly accurate, verified by 3rd parties accredited calibration labs & test bodies in US, Japan & Germany in accordance with ISO/IEC 17025:2005 and ANSI/NCSL Z540-1 standard, traceable to NIST, JIS & DIN. Specification Measuring range: 1.0” or 0.00° ~ ±5.00° dual-axis Resolution: 0.002”/ft or 40-second (0.18 mm/M or 0.01°) Accuracy: ±0.004”/ft or 80-second (± 0.02°) from 0° to 0.5° and 0.04° at other angles Operating temperature: -10°C to +50°C User may use device without or with Bluetooth® Measurement when paired with smartphone & Digi-Pas Machinist level App (Optional)(Bluetooth range: approx. 15mtr.) ACCURACY of Digi-Pas digital level is verified by accredited 3rd Party Calibration & Test Laboratories in USA, Japan and Germany traceable to NIST, JIS & DIN. MODE Switch angle display between X & Y Axis ALTERNATE ZERO SETTING Enable user to measure relative angles at a common plane with respect to a reference angle. The reference angle can be set using alternate zero feature
