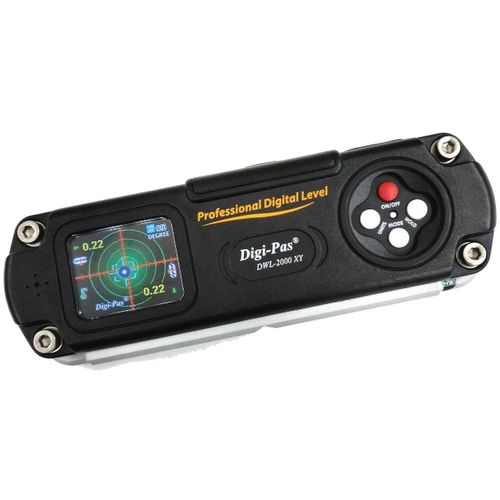

Precision level DWL-2000XY

digital

DWL-2000XY is a basic/entry model for 2-Axis precision digital level of resolution 0.01° or 175µm/M and measuring range of ±90.00°. Many precision leveling & angle alignment tasks essentially involve simultaneous 2-axis rather than the outdated single-axis. Digi-Pas® dual-axis digital level simultaneous displays two-dimensional plane angles, effectively simplifies the hurdles of taking angles 'one axis at a time' (tedious & time consuming of trial-and-error) experienced when using traditional single-axis ‘bubble’ or digital levels. The DWL-2000XY is an affordable yet effective tool for installation, setting up & maintenance of precision machines, test/measuring instruments, & alignment-sensitive equipment. Specification Measuring Range from 0° ~ ±90° Single-Axis 0° ~ ±3° Dual-Axis Resolution of 0.01° (0.175 mm/M) (0.002 in/feet) Accuracy: ±0.02° at 0° to 2.00° ±0.04° at other angles Digital colour graphic display of dual angles Enable USB External power source Professional PC Sync software with USB connection to device for remote monitoring & data logging (Optional) Operating temperature at -10°C to +50°C Benefit SPEED & PRECISION Instant 2-Axis concurrent digital display of high resolution 0.01°(175 µm/M) of levelling measurement for time saving and quality professional works. CLARITY Digital colour graphic & numeric display to enable real-time collection of digital angle levelling/alignment data for machine commissioning accountability & analysis EFFECTIVE The remote measurement USB connectivity provides advantages that traditional spirit level is difficult or unable to match. i.e. effectively, only one person is required to level/align a machine.
