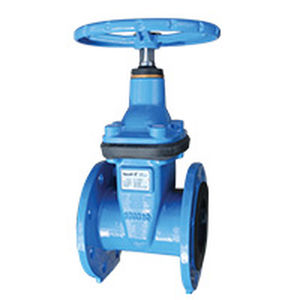

Gate valve VOC-00, VOC-08 serieswith handwheelfor wastewaterflange
Add to favorites
Compare this product
Characteristics
- Type
- gate
- Operation
- with handwheel
- Media
- for wastewater
- Body
- flange
- Applications
- for water systems
- Material
- cast iron
- Associated function
- fire protection
- DN
Max.: 1,000 mm
(39.37 in)Min.: 40 mm
(1.575 in)- Pressure
Max.: 25 bar
(362.6 psi)Min.: 10 bar
(145 psi)- Temperature
Max.: 110 °C
(230 °F)Min.: -10 °C
(14 °F)
Description
Body material
Ductile iron
Wedge material
EPDM coated ductile iron
PN (End)
PN10/16
Connection
flanged
Contact sealing
EPDM
Operating system
Handwheel non rising stem
