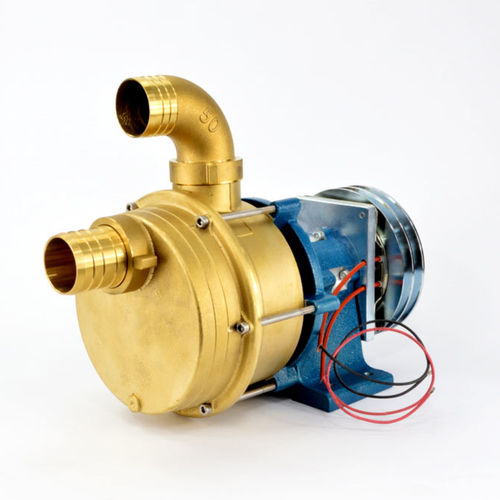

Brass pump IFE serieswaterfor solventshydraulically-operated
Add to favorites
Compare this product
Characteristics
- Fluid
- water, for solvents
- Operation
- hydraulically-operated
- Priming
- self-priming
- Technology
- centrifugal
- Mobility
- stationary
- Domain
- industrial, agriculture
- Applications
- transfer, cooling, irrigation, washing
- Material
- brass
- Other characteristics
- suction
- Flow
Min.: 97 l/min
(25.62469 us gal/min)Max.: 360 l/min
(95.10194 us gal/min)- Head
Min.: 45 m
(147'07" )Max.: 65 m
(213'03" )
Description
The best solution for the suction and transfer of liquids, thanks to the strong self-priming capacity, the ability to run even with discontinuous presence of the liquid in suction and the reversibility of the flow. The IFE series is made of CB754S brass with a stainless steel shaft. This version with support and pulley allows easy coupling with any motor. In addition, an electromagnetic clutch is placed between the pulley and the shaft, which allows you to connect the pump to a running motor and to control the coupling and disengagement of the pump remotely by means of a simple switch. For each application, it is necessary to check the suitability and choose appropriate gaskets.
The product are particularly suitable for use:
nautical (bilge, services, cooling, washing, sea water)
agriculture (fungicides, liquid fertilizers, components on agricultural machinery, irrigation)
transports (tankers, road machines, on board water systems)
