Spiral gasket TE/RE Seriesfoamrubberelastomer
Add to favorites
Compare this product
Characteristics
- Type
- spiral
- Material
- foam, rubber, elastomer, neoprene®, silicone rubber, steel, stainless steel, EPDM, silicone, metal wire, copper
- Configuration
- profiled
- Application
- EMI shielding, foam, tube
- Other characteristics
- knitted, envelope, dust protection
Description

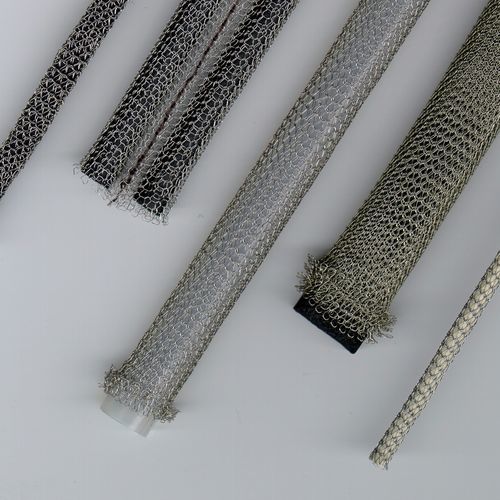

Elastomer core gaskets are made of a resilient rubber core, knitted over by layers of wire mesh (most common is two layers). The knitted wire element provides EMI shielding effectiveness, while the elastomer core enables the gasket section to recover more quickly, following repeated compressions. Elastomer core gaskets are used where the application requires a conformable EMI seal and even where a dust protection is needed.
- IMPROVED RESILIENCY COMBINED TO DUST-MOISTURE SEALING
- EXCELLENT ATTENUATION CHARACTERISTICS (95-105 dB in E-field, 40-80 dB in H-field)
- CONTINUOUS OR CUT-TO-LENGTH GASKETS
- PRESSURE SENSITIVE ADHESIVE (optional)
- RANGE OF CORES:
NEOPRENE sponge (NS)
EPDM sponge (ES)
SILICONE sponge (SS)
SILICONE tube (ST)
LOW DENSITY FOAM (LF)
- RANGE OF WIRES:
MONEL (MO)
TINNED COPPER CLAD STEEL (TC)
STAINLESS STEEL (SL)
BERYLLIUM COPPER (BC)
TINNED BERYLLIUM COPPER (BT)
RED COPPER (CO)
TINNED COPPER (TR)
ALUMINIUM (AL)
