Multi-layer gasket bondedneoprene®silicone rubber

multi-layer gasket
multi-layer gasket
Add to favorites
Compare this product
indicative price

Characteristics

Configuration
bonded
Material
neoprene®, silicone rubber, wire mesh, EPDM
.application
EMI shielding
Other characteristics
knitted, multi-layer
Temperature limit

Min.: -40 °C (-40 °F)

Max.: 100 °C (212 °F)

Description

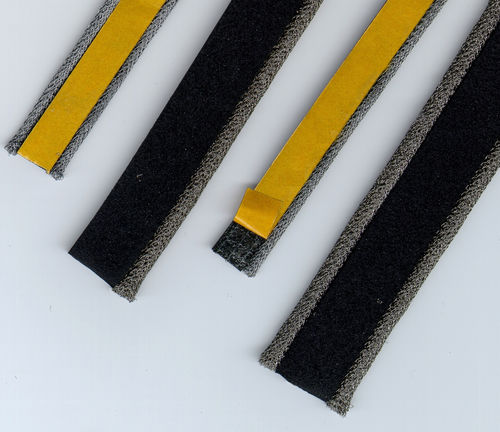

Multistrip gaskets are realized with an elastomer gasket bonded to an EMI/RFI shielding gasket. This soultion allows to obtain an high performance in terms of both water/dust seal and electromagnetic interference protection. Gaskets can be realized continuous or according to a drawing as a complete frame, ready to install. Adhesive tape on elastomer side is supplied as a standard. Characteristics: - COMBINATION OF KNITTED WIRE MESH BONDED TO AN ELASTOMER WHICH PROVIDES AN EMI SHIELDS AS WELL AS AN ENVIRONMENTAL SEALING - COMPLETE CHOICE OF KNITTED WIRE MATERIALS - PRESSURE SENSITIVE ADHESIVE ON ELASTOMER FOR EASY APPLICATION - CUSTOMIZED AND CUT-TO-LENGTH GASKETS - RANGE OF CORES: NEOPRENE sponge (NS) EPDM sponge (ES) SILICONE sponge (SS) - RANGE OF WIRES: MONEL (MO) TINNED COPPER CLAD STEEL (TC) STAINLESS STEEL (SL) BERYLLIUM COPPER (BC) TINNED BERYLLIUM COPPER (BT) RED COPPER (CO) TINNED COPPER (TR) ALUMINIUM (AL)
