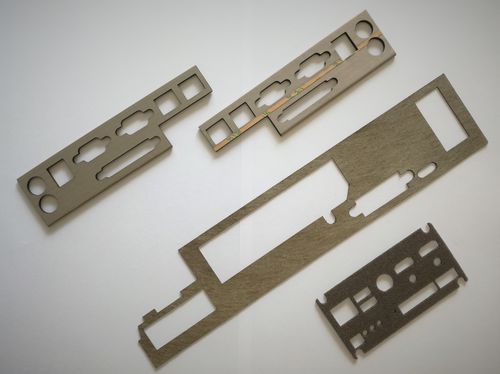

Flat seal CG Series

polyurethaneplasticcarbon

Connector gaskets are made of a low compression force foam core, bonded over with conductive fabric and shaped like customer’s drawings. Ni/Cu standard or Ni/Cu with Carbon protection coating fabric bonded to resilient core (normally available in urethane foam) offers a very good shielding efficiency and works as a seal to block air, light and dust. Connector gaskets are also available with PSA, if required. - CONDUCTIVE FABRIC WRAPPED OVER FOAM OR SPONGE CORE AND DIE-CUT AS DRAWING - SUITABLE FOR USE ON METAL ENCLOSURES OR METALLIZED PLASTICS (LOW COMPRESSION FORCE) - OVER 100dB AVERAGE SHIELDING EFFICIENCY IN THE RANGE 100MHz-10GHz - RIP-STOP FABRICS THAT ALLOW SELF-TERMINATING CUT ENDS ON GASKETS - AVAILABLE WITH NICKEL COPPER FABRIC TO ASSURE THE BEST SHIELDING PREFORMANCE - PRESSURE SENSITIVE ADHESIVE (optional) - RANGE OF CORES: POLYURETHANE FOAM (PU) LOW-DENSITY FOAM (LF) NEOPRENE SPONGE (NS) EPDM SPONGE (ES) - RANGE OF FABRICS: NICKEL COPPER (NC) NICKEL COPPER + C-COATING(black) (SI)
