conductive fabric over polyurethane foam gasket / lipped / bonded / shielding

Add to MyDirectIndustry favorites
Compare this product
conductive fabric over polyurethane foam gasket / lipped / bonded / shielding conductive fabric over polyurethane foam gasket / lipped / bonded / shielding
{{requestButtons}}

Characteristics

  • Type:

    lipped

  • Configuration:

    bonded

  • .application:

    shielding

  • Other characteristics:

    conductive fabric over polyurethane foam

Description

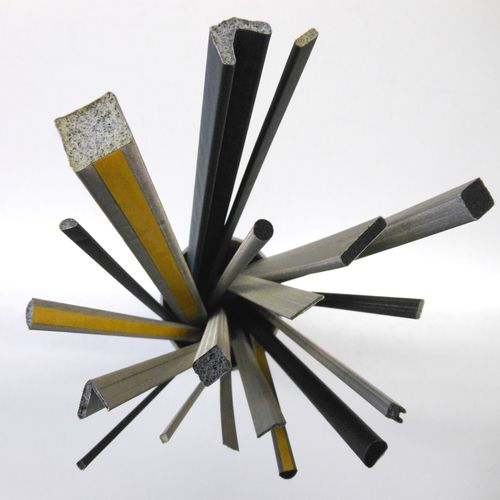

Fabric over foam gaskets are made of a resilient foam core, bonded over with conductive fabric. More than 70 different profiles offer unlimited selection for any application. Some profiles contain rigid inserts. Metallized conductive fabric bonded to resilient core (available in urethane foam, neoprene sponge) offers a good shielding efficiency and works as a seal to block air, light and dust. All profiles are available with UL94-V0 specifications.

• CONDUCTIVE FABRIC WRAPPED OVER FOAM OR SPONGE CORE: EASY TO APPLY AND TO INSTALL

• SUITABLE FOR USE ON METAL ENCLOSURES OR
METALLIZED PLASTICS
(LOW COMPRESSION FORCE)

• OVER 100dB AVERAGE SHIELDING EFFICIENCY IN THE RANGE 100MHz-10GHz

• RIP-STOP FABRICS THAT ALLOW SELF-TERMINATING CUT ENDS ON GASKETS

• AVAILABLE ON REELS, CUT-TO-LENGTH or PREFORMED READY TO INSTALL GASKET

• PRESSURE SENSITIVE ADHESIVE ATTACHMENT (standard)

• Range of cores:
URETHANE FOAM (PU)
Low Density FOAM (LF)
NEOPRENE sponge (NS)

•And fabric materials:
CARBON COATED SILVER (SI)
NICKEL COPPER (NC)
