Overview

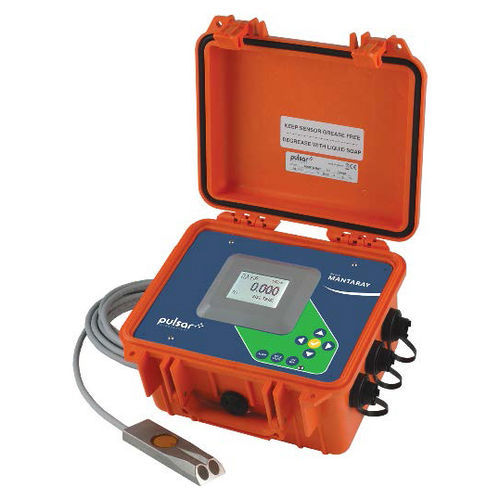

The MANTARAY portable area-velocity flow meter is engineered for accurate flow surveys in open channels, partially full sewer pipes and surcharged conduits. Suitable for stormwater, sewage, irrigation and natural streams, it measures level and velocity to compute flow and total volume.

Function / Detection / Technology (table)
Measurement: Area-velocity flow
Detection: Flow/velocity and level
Technology: Doppler ultrasonic hydrodynamic sensor

Ultrasonic hydrodynamic level and velocity sensor
A submerged Doppler ultrasonic sensor continuously measures channel velocity and level. The sealed sensor resists fouling, corrosion and abrasion. Real-time flow rate and total are shown on a large backlit LCD. Data can be logged and exported via USB; 4-20 mA and relay outputs allow integration with samplers, SCADA and telemetry systems.

Portable flow monitor for partially filled pipes & open channels
Using the area-velocity method, the MANTARAY calculates flow after entering the pipe diameter or channel dimensions. The ultrasonic sensor mounts inside the pipe or on the channel bottom with the included stainless steel bracket and a single screw—no special tools or compounds required. The sensor is fully sealed with no orifices or ports.

The right meter for

• Sewer flow monitoring and reporting
• Industrial effluent measurement
• Stormwater monitoring
• Natural stream gauging
• Irrigation water management

Compatible electronics
LED96 digital measurement indicator (recommended).

Technical features / Specifications

• Model name: MANTARAY
• Product type: Portable area-velocity flow meter for open channels and partially full pipes
• Sensor type: Submerged Doppler ultrasonic hydrodynamic level and velocity sensor
• Measured parameters: Velocity, Level (used to compute Flow and Total)
• Technology: Doppler
• Outputs: 4-20 mA and relay outputs for samplers, SCADA and telemetry
• Data logging: Flow logs downloadable to USB memory stick
• Display: Large backlit LCD showing real-time flow rate and total
• Mounting: Stainless steel mounting bracket included; single-screw installation
• Construction: Sealed sensor with no orifices or ports; resists fouling, corrosion and abrasion
• Calibration: Enter pipe diameter or channel dimensions; automatic flow computation
• Typical applications: Stormwater, Sewage, Irrigation, Natural Streams, Industrial Effluent
