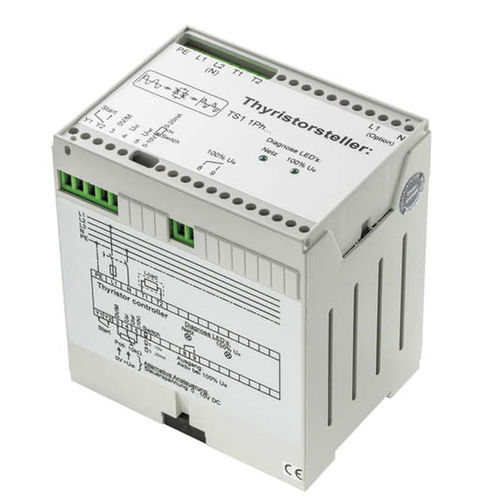

Thyristors power controller TS1

single-phaseDIN railfor lighting applications

The TS1 single-phase power thyristor controller is used to control the load or power of industrial load applications (e.g. fans, pumps, lamps, heating coils, industrial ovens). Its solid and compact design permit seamless installation and a wear-free control with a high degree of efficiency. • Application/type : Power thyristors • Configuration : DIP switches • Output voltage : reference voltage for potentiometer: 10 V = • Output switch contact : signal contact at 100% Ua, 1x contact NO, 3A for 250 V ~ or 24 V =, floating, output for ohmic and inductive loads, 0,46 kW (230 V ~ / 2 A), 0,92 kW (230 V ~ / 4 A), 1,38 kW (230 V ~ / 6 A), 1,84 kW (230 V ~ / 8 A), 2,3 kW (230 V ~ / 10 A), 2,76 kW (230 V ~ / 12 A) • Input : input for potentiometer 2,5..10 kΩ, electrical activation via setpoint signal 0..10 V = or 0..20 mA, optionally configurable • Operating range temperature (°C) : 0..+45 • Power supply : L1, N: 230 V ~ 48..62 Hz, self-synchronizing • Power consumption : typ. 2,5 W, typ. 4,5 W, typ. 6,5 W, typ. 9 W, typ. 11 W, typ. 13 W • Enclosure : PA • Protection (IP) : IP40, terminal blocks IP23, according to EN 60529 • Connection : terminal block, max. 2,5 mm² • Mounting : prepared for mounting on DIN rail TS35 (35x7,5 mm) according to EN 60715 • Device length (mm) : 100 • Device height (mm) : 110 • Notes : types up to 4 A with cooling plate, types 6 A with heat sink, types 8 A and higher with heat sink and fan • Catalogue table : Power thyristors
