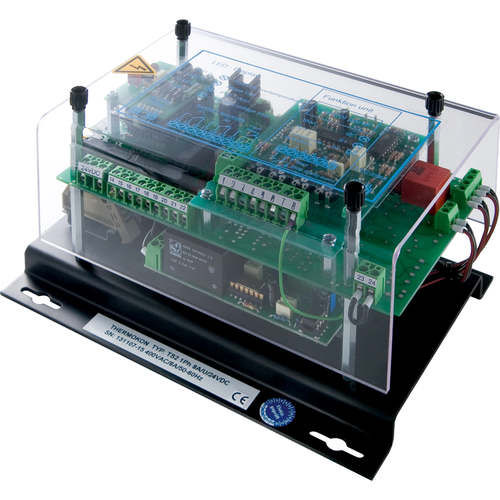

Thyristors power controller TS2

three-phasepanel-mountfor lighting applications

Power thyristors are used as actuators for industrial power controls (e.g. fans, pumps, lamps, heating registers, industrial furnaces). Their solid and compact construction ensures reliable control and and high efficiency. • Application/type : Power thyristors • Configuration : jumper, DIP switches • Output voltage : reference voltage for potentiometer: 10 V = • Output switch contact : signal contact at 100% Ua, signal contact in case of fault state, changeover contacts, 2A for 230 V ~, floating, output for ohmic and inductive loads, 50 kW (400 V ~ / 75 A), 60 kW (400 V ~ / 90 A), 78 kW (400 V ~ / 120 A) • Input : input for potentiometer 2,5..10 kΩ, input for PTC according to DIN 44081, electrical activation via setpoint signal 0..10 V =, 0..20 or 4..20 mA, optionally configurable • Operating range temperature (°C) : 0..+55 • Power supply : L1, L2, L3, N: 400 V ~ 48..62 Hz, self-synchronizing • Power consumption : typ. 202 W, typ. 243 W, typ. 324 W • Display : 9 LEDs showing status of the device • Enclosure : aluminium, cover plexiglass • Protection (IP) : IP23 • Connection : power connections, M8 connection screw for cable lug, connection control electronics, max. 1.5 mm² • Mounting : 4 mounting holes Ø=8 mm for mounting on galvanized mounting plates (control cabinet) • Device length (mm) : 200 • Device width (mm) : 140 • Device height (mm) : 115
