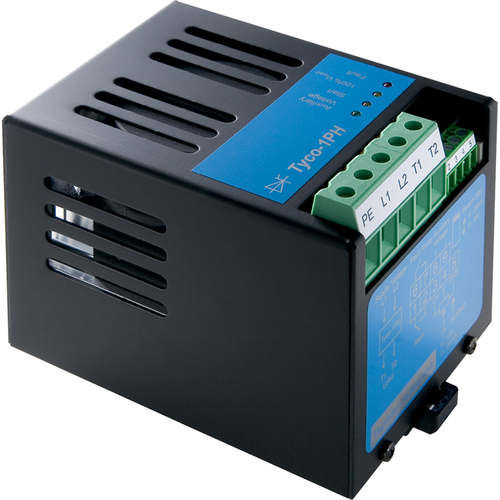

Thyristors power controller TS3

single-phaseDIN railfor lighting applications

Power thyristors are used as actuators for industrial power controls (e.g. fans, pumps, lamps, heating registers, industrial furnaces). Their solid and compact construction ensures reliable control and and high efficiency. • Application/type : Power thyristors • Configuration : DIP switches • Output voltage : reference voltage for potentiometer: 10 V = • Output switch contact : signal contact in case of fault state, 1x contact NO, 2A for 230 V ~, floating, output for ohmic and inductive loads, 3,5 kW (230 V ~ / 15 A), 5,75 kW (230 V ~ / 25 A), 8,05 kW (230 V ~ / 35 A), 11,5 kW (230 V ~ / 50 A) • Input : input for potentiometer 2,5..10 kΩ, electrical activation via setpoint signal 0..10 V =, 0..20 or 4..20 mA, optionally configurable • Operating range temperature (°C) : 0..+50 • Operating range humidity : max. 95% rH non-condensing • Power supply : L1, N: 230 V ~ 45..65 Hz, self-synchronizing • Power consumption : typ. 13 W, typ. 22 W, typ. 31 W, typ. 45 W • Display : 4 LEDs showing status of the device • Enclosure : aluminium • Protection (IP) : IP40, according to EN 60529 • Connection : terminal block • Mounting : prepared for mounting on DIN rail TS35 (35x7,5 mm) according to EN 60715 • Device length (mm) : 92 • Device width (mm) : 105 • Device height (mm) : 128
