INNER RADIAL SEAL (BORE PLUGS) 3 LOADING TRAYS

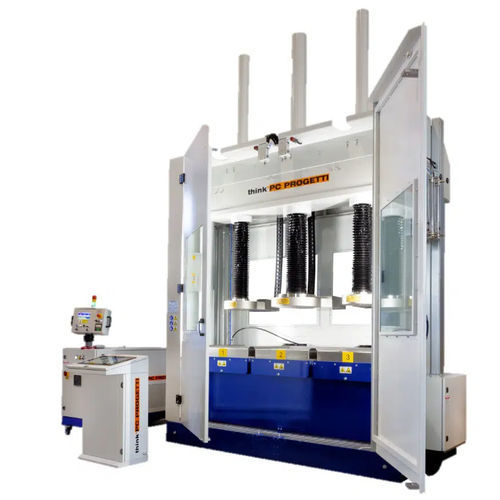

Vertical test rig with inner radial seal clamping style.
3 test places available for contemporary pressure tests.
The screwed columns assure complete absence of external forces on valves body.
This prerogative makes it compliant to the most widespread international test standards.
The rig is controlled by a SKMM-100 pressurization skid
REACTION FORCE (TOTAL) : 3x150 TON (See working limits table)
VALVE LENGTH MAX : 1200 mm
VALVE LENGTH MIN : 150 mm
CENTER TO CENTER DISTANCE : 700 mm
LOADING HEIGHT : 925 mm
BASEMENT WATER VESSEL : 400 Liters
LOADING TRAY : 3 indipendent
LOADING TRAY LENGTH : 400 mm
TERMINATIONS ALLOWED : BW, SW, RF, RJ
CLAMPING STYLE : Type 2 – Inner radial
DIMENSIONS (MECH) : 2525(L) x 1200(D) x 2750(H)
