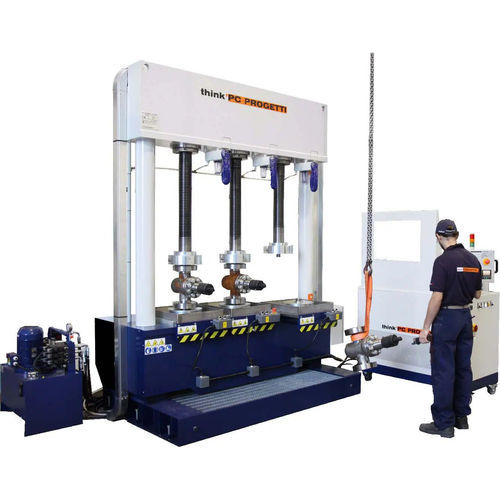

Pressure test bench BV-3V/240

PLC-controlledvalveindustrial

INNER RADIAL SEAL (BORE PLUGS) 3 LOADING TRAYS Vertical test rig with inner radial seal clamping style. 3 test places available for contemporary pressure tests. The screwed columns assure complete absence of external forces on valves body. This prerogative makes it compliant to the most widespread international test standards. The rig is controlled by a SKMM-100 pressurization skid REACTION FORCE (TOTAL) : 3x80 TON (See working limits table) VALVE LENGTH MAX : 700 mm VALVE LENGTH MIN : 150 mm CENTER TO CENTER DISTANCE : 580 mm LOADING HEIGHT : 1170 mm BASEMENT WATER VESSEL : 400 Liters LOADING TRAY : 3 indipendent LOADING TRAY LENGTH : 400 mm TERMINATIONS ALLOWED : BW, SW, RF, RJ CLAMPING STYLE : Type 2 – Inner radial DIMENSIONS (MECH) : 2200(L) x 1200(P) x 2450(H)
