INNER RADIAL SEAL (BORE PLUGS)
3 LOADING TRAYS
DIFFERENTIATED LOAD

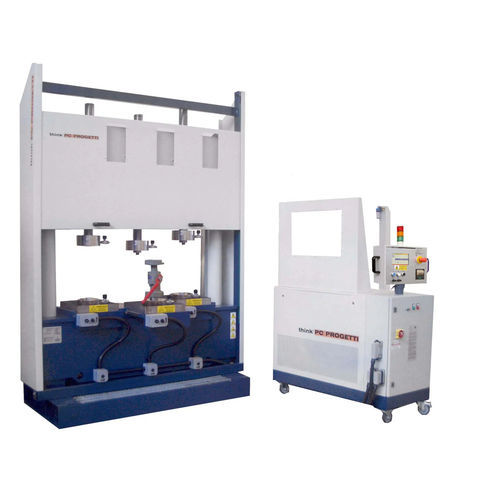

Vertical test rig with inner radial seal clamping style.
3 test places available for contemporary pressure tests.
The screwed columns assure complete absence of external forces on valves body.
This prerogative makes it compliant to the most widespread international test standards.
The rig is controlled by a SKA-100 pressurization skid
REACTION FORCE (TOTAL) : 150 TON 3x50 TON (See working limits table)
VALVE LENGTH MAX : 700mm
VALVE LENGTH MIN : 0mm
LOADING HEIGHT : 900mm
MAX FLANGE DIAMETER : 450mm
BASEMENT WATER VESSEL : 250 Liters
TERMINATIONS ALLOWED : BW, SW, RF, RJ
CLAMPING STYLE : Type 2 - Inner radial
LOADING TRAY LENGTH : 300mm
DIMENSIONS (MECH) : 1860(L) x 1250(D) x 2750(H)
