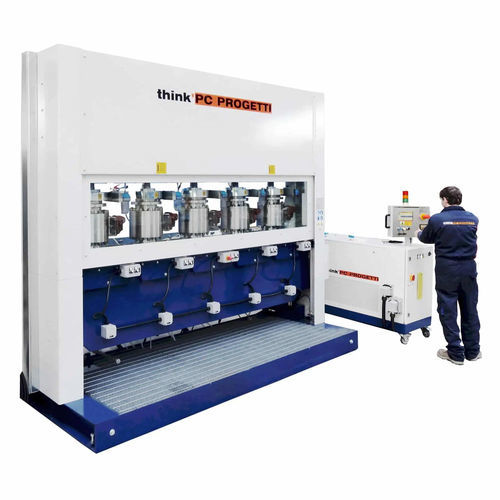

Pressure test bench BV-5V/150SH

leakautomaticmanual

INNER RADIAL SEAL (BORE PLUGS) 5 LOADING TRAYS Vertical test rig with inner radial seal clamping style. 5 test places available for multiple pressure test. The screwed columns assure complete absence of external forces on valve body. This prerogative makes it compliant to the most widespread international test standards. The rig is controlled by SKA-100 pressurization skid REACTION FORCE (TOTAL) : 150 TON 5 x 30 TON LENGTH MAX : 700 mm LENGTH MIN : 200 mm CENTER TO CENTER DISTANCE : 580 mm LOADING HEIGHT : 1200 mm BASEMENT WATER VESSEL : 400 Liters ca. TERMINATIONS ALLOWED : BW, SW, RF, RJ CLAMPING STYLE : Type 2 – Bore plugs DIMENSIONS (MECH) : 3280(L) x 1250(D) x 2750(H)
