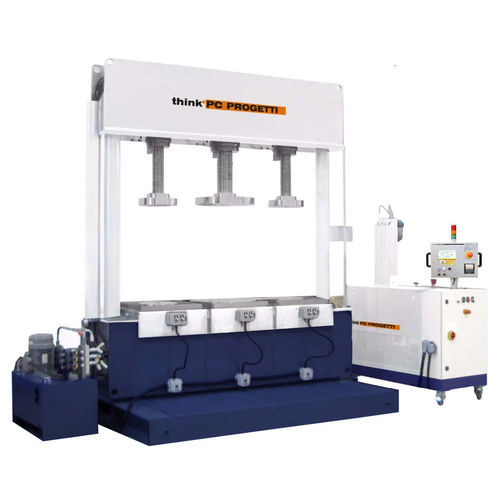

Pressure test bench BV-3V/270L

leakautomaticPLC-controlled

INNER RADIAL SEAL (BORE PLUGS) 3 LOADING TRAYS DIFFERENTIATED LOAD Vertical test rig with inner radial seal clamping style. 3 test places available for contemporary pressure tests. The screwed columns assure complete absence of external forces on valves body. This prerogative makes it compliant to the most widespread international test standards. Different screw diameters let you extend valves range for testing. The rig is controlled by a SKMM-100 pressurization skid REACTION FORCE (TOTAL) : 270 TON 3x90 TON 2x125 TON (lateral) 1x200TON (central) (See working limits table) VALVE LENGTH MAX : 1200mm VALVE LENGTH MIN : 500mm CENTER TO CENTER DISTANCE : 650mm LOADING HEIGHT : 970mm SCREW STROKE : 700mm LOADING TRAY LRNGHT : 3independent BASEMENT WATER VESSEL : 450 Liters TERMINATIONS ALLOWED : BW, SW, RF, RJ CLAMPING STYLE : Type 2 - Inner radial DIMENSIONS (MECH) : 2200(L) x 1200(D) x 2750H)
