Pressure test bench BV-5CV/100P

leakautomaticmanual

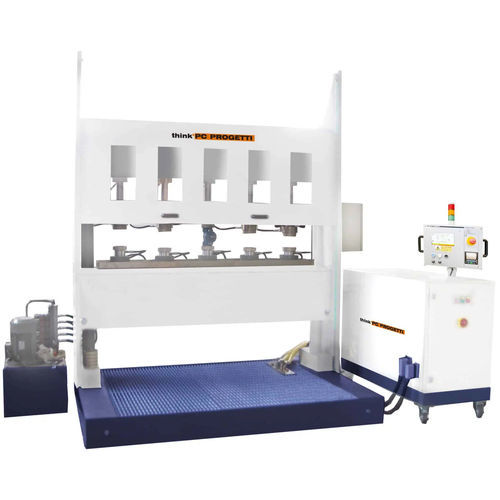

COMBINED CLAMPING, INNER RADIAL SEAL + PROPORTIONAL PRESSING 3 LOADING TRAYS Vertical test rig with inner radial seal and proportional pressing. It has 5 test places with combined clamping. With the hydraulic cylinder (bottom side), operators can test flanged valves with proportional controlled press clamping, where the press force is automatically controlled according to the water pressure inside the valve, and the result load is reduced to minimal terms. With the screwed columns it can test BW,SW terminations using the inner radial seal. The combination of these two different clamping styles makes the rig suitable for all valve kinds. The unit could be controlled by a SKA-100 pressurization skid. REACTION FORCE : 100 TON (10% minimum press clamping) 5x20 TON (See working limits table) VALVE LENGTH MAX : 500mm VALVE LENGTH MIN : 50mm CENTER TO CENTER DISTANCE : 300mm LOADING HEIGHT : 1000mm BASEMENT WATER VESSEL : 200 Liters TERMINATIONS ALLOWED : BW, SW, RF, RJ CLAMPING STYLE : Type 3 - Combined CLAMPING FORCE CONTROL : Automatic within 5..100% interval , proportional to the hydrostatic pressure inside the valve under test. Reg. gain controlled by the operator DIMENSIONS (MECH) : 2106 (L) x 1420 (D) x 2536 (H) (skid not included)
