Distribution transformer
drycast resinsingle-phase

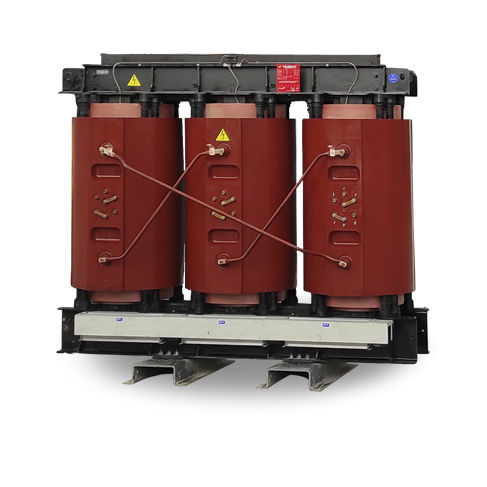

Distribution transformer - Timsan Transformateur - dry / cast resin / single-phase

Distribution transformer - Timsan Transformateur - dry / cast resin / single-phase - image - 2

Add to favorites

Compare this product

Characteristics

Type

distribution

Configuration

dry, cast resin

Electrical characteristics

single-phase, three-phase, high-voltage

Mounting

floor-standing

Other characteristics

cooling

Output power kVA

Min.: 25 kVA
(33.990529 hp)

Max.: 10,000 kVA
(13,596.211552 hp)

Primary voltage

36 kV

Secondary voltage

36 kV

Description

We manufacture Cast Resin Dry Type Transformers from 25 kVA up to 10.000 KVA up to 36 kV voltage class. Cast Resin Transformers are a cost-effective and convenient alternative to traditional high voltage Oil Immersed Power and Distribution Transformers. Cast Resin Transformers can be manufactured with AN and AF cooling methods. AF cooling method increases Transformer’s capacity and performance up to %30-%40. Cast Resin Dry Type Transformers are manufactured according to International Standards. Each Transformer is tested carefully in TİMSAN TRANSFORMER’s accredited test laboratory. These tests are applied according to international standards. Advantages of Cast Resin Dry Type Transformers • Non-Flammable • Low Operational Expenses • Maximum Safety • High Performance • Low-cost Service • Environment Friendly • Low Operating Cost • Maintenance Free
