- Tolomatic, TOL-O-MATIC

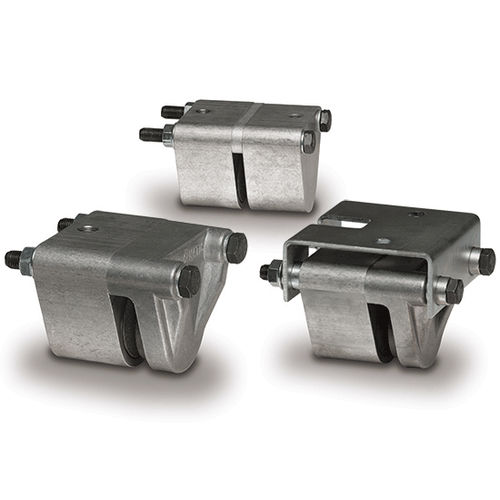

Disc brake P20 Seriespneumaticdouble
Add to favorites
Compare this product
Characteristics
- Type
- disc
- Operation
- pneumatic
- Other characteristics
- double
Description
The P20 pneumatic brake series provides up to 1000 in-lbs (113 Nm) of torque at a maximum pressure of 100 PSI (6.9 bar). The P20 pneumatic brake series offers single acting and double acting models.
• Durable aluminum construction
• Replaceable high-grade friction material
• Buna-N seals are standard with EPR and Viton® seals as optional
• Accommodates disc diameters up to 16 inches (406 mm)
• Other options include retractable pistons and floating bracket
