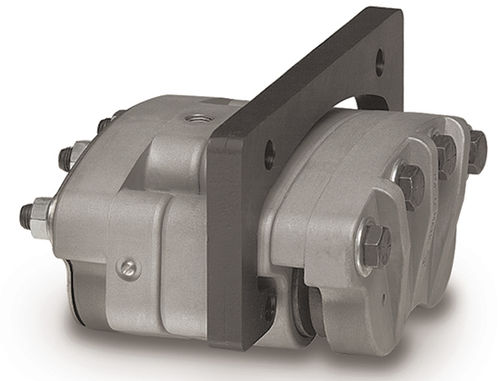

Disc brake FS220B Seriesspringsafety
Add to favorites
Compare this product
Characteristics
- Type
- disc
- Operation
- spring
- Other characteristics
- safety
- Torque
763 Nm
(562.7599 ft.lb)
Description
The FS220B spring applied disc brake series provides up to 6750 in-lbs (763 Nm) of static torque (based on linings with no wear). FS220B spring applied disc brakes are single acting with floating mount and fixed disc.
• Requires 750 PSI (51.75 bar) of pressure for release
• Durable aluminum construction
• Replaceable high-grade friction material
• Safety brake with high force storage capabilities
• Accommodates disc diameters up to 16 inches (406 mm)
