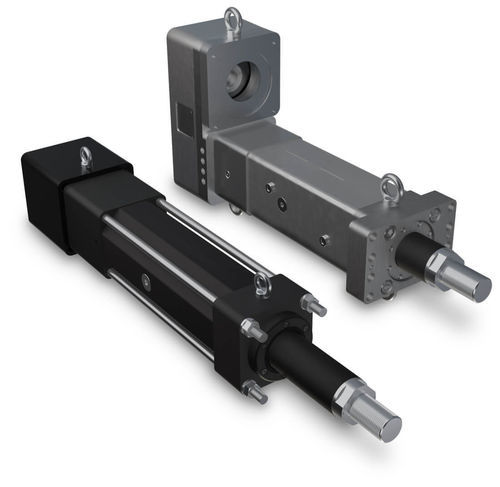

Electric actuator RSX50

linearplanetary roller screwrugged

Overview
The RSX family of extreme high-force electric linear actuators provides an effective alternative to hydraulic cylinders for demanding industrial applications. They deliver long life and precise axial control by using high-precision planetary roller screws and robust Type III hard coat anodized housings.

Key highlights

• Forces up to 100,000 lbf (445 kN)
• Stroke lengths up to 59 in (1,500 mm)
• Available with ball screw and planetary roller screw drive options
• Type III hard coat anodized aluminum housing for harsh environments
• IP67 option for dust and water protection

Features

• Ball screw or planetary roller screw drive options to match application requirements
• Type III hard coat anodized aluminum housing
• Standard thrust rod anti-rotation feature
• IP67 option for ingress protection
• Compatible with servo motors and gearboxes (approx. frame sizes up to 290 mm)
• Food-grade option with white epoxy coating and stainless steel thrust rod
• Oil-filled / oil-cooled variants for high-speed, high-duty applications

Specifications (summary)
RSX Sizes: RSX10 | RSX15 | RSX20 | RSX25 | RSX33P | RSX50
Maximum Stroke (in / mm): 59 (1,500) | 59 (1,500) | 50 (1,270) | 26 (660) | 26 (660) | 25 (630)
Maximum Force (lbf / kN): 20,000 (89) | 30,000 (133) | 40,000 (178) | 50,000 (222) | 66,000 (294)* | 100,000 (445)
Maximum Speed (in/sec / mm/sec): 30 (760) | 30 (760) | 30 (760) | 30 (760) | 20 (510) | 17 (432)

Notes
Recent nomenclature updates: RSX096 renamed RSX15 and RSX128 renamed RSX25. *Maximum force for RSX33P applies in extend only.

Characteristics / Technical specifications

• Force capability: up to 100,000 lbf (445 kN) depending on size and configuration
• Maximum stroke: up to 59 in (1,500 mm) on select sizes
• Screw options: planetary roller screws (high precision) and ball screws
• Typical maximum speeds: up to 30 in/sec (760 mm/sec) for several sizes; larger sizes have lower max speeds
• Housing: Type III hard coat anodized aluminum
• Ingress protection: IP67 option available
• Standard mechanical feature: thrust rod anti-rotation
• Optional features: oil-filled / oil-cooled variants, food-grade white epoxy coating, stainless steel thrust rod
• Motor compatibility: designed to work with servo motors and gearboxes (frame sizes up to ~290 mm)
• Documentation available: brochures, flyer, product manual and parts sheet with ordering and sizing data
