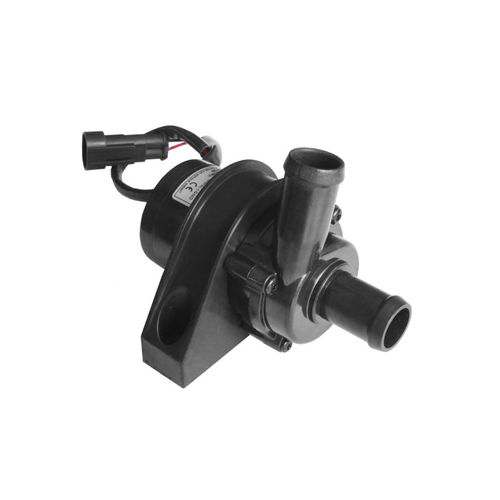

water pump / for food products / with brushless DC motor / centrifugal



  • Media:

    water, for food products

  • Operation:

    with brushless DC motor

  • Type:


  • Other characteristics:

    for heating, circulation

  • Flow:

    Min.: 25 l/min (6.6043 us gal/min)

  • Head:

    Min.: 3 m (9'10")


Max Flow Rate:15L,20L,25L
Max Static Lift:1M,2M,3M
Rated Voltage:12V 24V
Impeller Type:Half-Closed impeller
Ambient Temperature:-40-120°C
Liquid Temperature:0-120°C
Temp. sustain -40~120°C
Meet car power supplying way
Vibration endurable
Flow up to 25L/min
Heavy duty work, can sustain continual 24 hours
DC brushless motor with long lifetime
Automatic polarity protection, overload protection, block protection
special design to meet car power supplying way which occur high peak voltage or unstable voltage
Applied liquid: pure water, antifreeze solution
Areas of use:
Car engine cooling circulation
Car engine pre-heating
Heating system (Car Auxiliary heaters & parking heaters)
Electric vehicles water circulation system
Normal Hot Water Circulation
Liquid Transfer
General Purpose Pumping
The benefit to the customers:
With 20mm Inlet/Outlet standard car connection and specialized water-proof connector, then the pumps can be quickly and efficiently integrated into vehicles.
With -40°C~120°C (104~248° F) working temperature,TOPSFLO TA50 engine pre-heating & parking heater pumps provide the vehicles an efficient working environment even at extreme outdoor temperatures and in bad weather conditions.
Special design to meet car vibration working requirement,car power supplying way which occur peak voltage or unstable voltage.
Special design to meet car power supplying way which occur high peak voltage or unstable voltage
With polarity protection function, then the pump will not burned by wrong wiring.
