Automatic testing machine 532materialhigh-temperature
Add to favorites
Compare this product
Characteristics
- Operating mode
- automatic
- Test material
- material
- Other characteristics
- high-temperature
Description

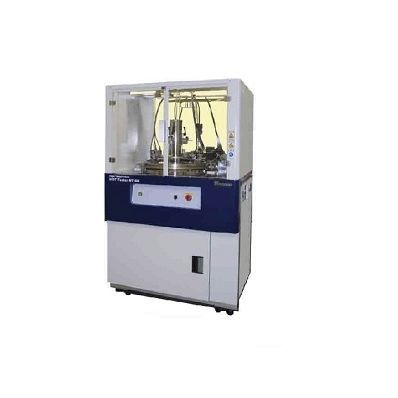

High temperature HDT Tester is designed for HDT and Vicat testing at temperatures exceeding 300°C.
Temperature distribution is dramatically improved by controlling the placement of test specimens and the air flow in the chamber.
ISO 75 - Plastics-Determination of temperature of deflection under load
ISO 306 - Plastics-Thermoplastic materials-Determination of Vicat softening temperature (VST)
ASTM D648 - Standard Test Method for Deflection Temperature of Plastics Under Flexural Load in the Edgewise Position
ASTM D1525 - Standard Test Method for Vicat Softening Temperature of Plastics
Number of specimens - 6 or 3
Temperature range - 450°C max.
Heating rate - 120°C/h, 50°C/h
Power supply - Single-phase, AC200V, 50/60Hz, 3kVA (or specify)
Dimensions - W1110 × D795 × H1640mm
Weight - Approx. 190kg
