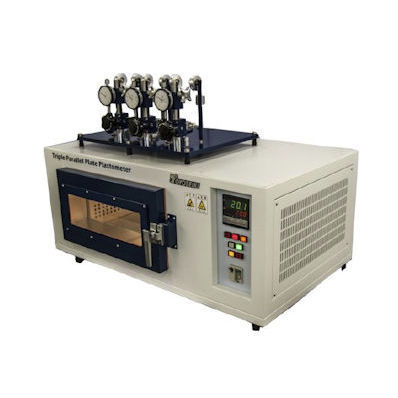

Automatic plastometer 534
Add to favorites
Compare this product
Characteristics
- Options
- automatic
Description
The Triple Parallel Plate Plastometer is used for conducting heat deformation test of electric wires, etc.
Load - 1 to 30N or 1 to 100N
Temperature range - 150°C max.
Dial gauge - 1/100mm, stroke 20mm
Power supply - Single-phase, AC100V, 50/60Hz, 3.5kVA (or specify)
Dimensions - W1070 × D920 × H780mm
Weight - Approx. 80kg
