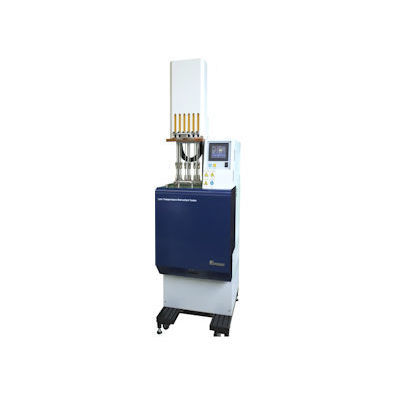

Temperature testing machine TR-1automaticfor rubberthree-phase
Add to favorites
Compare this product
Characteristics
- Test type
- temperature
- Operating mode
- automatic
- Test material
- for rubber
- Other characteristics
- low-temperature, three-phase
Description
The Low Temperature Retraction Tester evaluates the temperature at which a specimen reaches a certain specified contraction ratio while the temmperature of the specimen, which has been stretched to a certain level and frozen at a low temperature, is raised at a certain constant rate.
The TR test is mainly used to determine the elastic recovery characteristics at a low temperature of the materials of which sealing performance is required, such as rubber seal components, hose etc.
ISO 2921 - Rubber, vulcanized — Determination of low-temperature characteristics — Temperature-retraction procedure (TR test)
ASTM D1329 - Standard Test Method for Evaluating Rubber Property—Retraction at Lower Temperatures (TR Test)
Temperature range - -70 to +30°C
Temperature resolution - 0.1°C
Temperature accuracy - ±1.0°C
Test stations - 6
Max extension - 125mm
Cooling system - Secondary refrigerator
Power supply - Three-phase, AC200V, 50/60Hz, 6.9kVA (or specify)
Dimensions - W630 × D850 × H1670mm
Weight - Approx. 300kg
