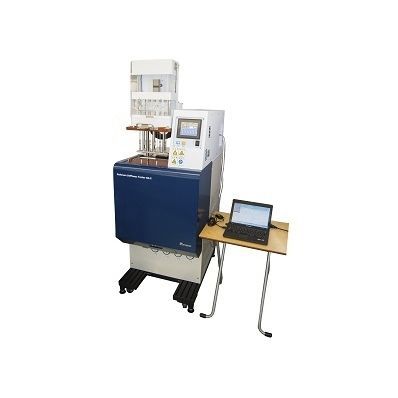

Stiffness tester GS-2

for rubberautomaticlow temperature

The Gehman Stiffness Tester evaluates the torsional stiffness of rubber at low temperature according to ISO 1432. The testing operation is automatic and specimens are twisted by means of torsion wires having nominal torsional constants at programmed test temperature. The angle of twist produced at this time is detected and is sent to the PC. Test Stations - 4 Specimen Sizes - Length: 40mm Width: 3mm Thickness: 2mm Clamps Span - 25±3mm Temperature Range (°C) - -70 to +23 Heat-transfer Medium - Ethanol Cooling System - Refrigerator Temperature Control Accuracy - ±1°C Angle of twist - 180° Torsion Angle Resolution - 0.1° Power Supply - Main unit: Single-phase, AC100V, 50/60Hz, 1.1kVA Refrigerator: Single-phase, AC100V, 50/60Hz, 0.3kVA (or specify) Dimensions - W300 × D500 × H930mm Weight (approx.) - Main unit: 68kg Refrigerator: 73kg
