Not specified measuring machine Rheolograph™fully-automaticfor rubbernot specified
Add to favorites
Compare this product
Characteristics
- Operating mode
- fully-automatic
- Measured material
- for rubber
- Configuration
- desktop
Description

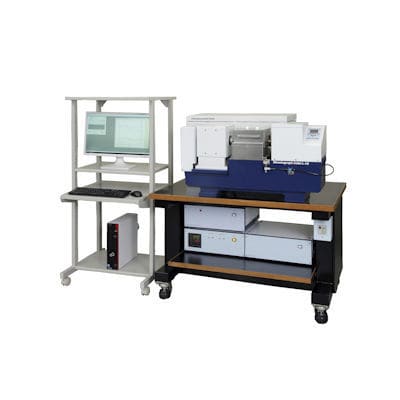

The Rheolograph™-Solid L-1R measures dynamic viscoelasticity of rubbers.
Measurement control and data processing are fully automated by means of computer.
This is the system with advanced functions and superb operation that makes further advances into measurement of viscoelasticity of rubbers.
Measurement range - Complex elastic modulus: 0.5 to 5×104MPa
Frequency - 1, 2, 5, 10, 20, 30, 50, 100Hz
Temperature range - -100°C to 250°C (Constant control range: -100ºC to 100ºC)
Max. vibration force - 200N
Max. load - 300N
Max. dynamic displacement - 1400μm
Specimen dimensions - 40(L) x 5(W) x 3(t)mm
Power requirement - Single-phase, AC100V, 50Hz or 60Hz, 3kVA (or specify)
Dry air requirement - 0.5MPa or more Flow rate 40L/min. or more
Liquid nitrogen - Required
Dimensions - W1200 × D1150 × H800mm
Weight - Approx. 340kg
