Temperature tester 884benchtopdigitalautomatic
Add to favorites
Compare this product
Characteristics
- Test type
- temperature
- Configuration
- benchtop
- Other characteristics
- digital, automatic
Description

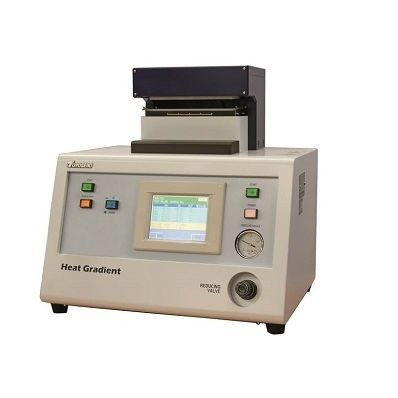

The Heat Gradient Tester evaluates critical temperature for sealing by producing temperature gradient across 5 heating platens and pressing under the same conditions.
Temperature range - 50 to 250°C
Max. temperature gradient - 50.0°C
Applied pressure - 0.08 to 0.4MPa (gauge pressure)
Pressure applying duration - 0.5 to 99.9sec.
Heating plate stroke - approx. 20mm
Seal size - 10 × 25mm, 5 heating plates
Power supply - Single-phase, AC100V, 50/60Hz, 1kVA (or specify)
(230V or 120V to 100V transformer is also available as an option)
Compressed air - 0.5MPa
Dimensions - W500 × D380 × H500mm
Weight (approx.) - 70kg
