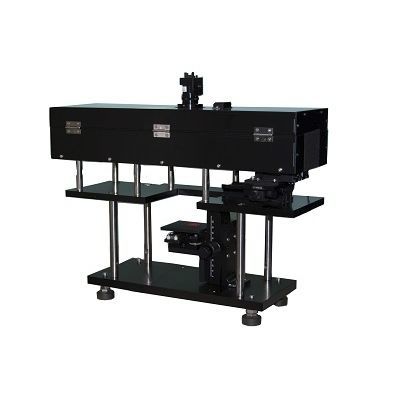

Automatic testing machine DH-1

paintadhesivefor coating

Evaluation of drying and curing status for paint coating, adhesives, etc. Using holograph technology enables analysis of phase from reflected light on coatings, which realizes visualization of image of drying spectrum and quantified evaluation of drying status from set-to-touch to touch dry by. Features • Recording and replaying wavefront of reflected light from coatings irradia ted with laser • Non contact and quantified evaluation • Evaluation and visualization of irradiated 3 dimensional surface irradiated with laser • Drying and curing spectrum evaluation Measurement principle - 1 minutes to 1200 hours, depending on measurement intervals Measurement scope - ∅20mm Measurement intervals - 2 sec. Camera - Monochrome, 1280×960 pixcels, 30fps Pixel size: 3.75×3.75um Connection:USB Laser - Wavelength 650nm, max. output 30mW, Class B Image process - Software process PC - Desktop, monitor: 21 inch or wider Power supply - Single-phase, AC100V, 50/60Hz, 5A Dimensions - W488 × D160 × H400mm Weight - Approx. 10kg Option - UV radiation control (DH-UV)
