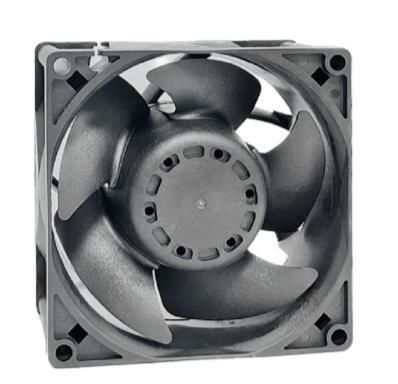

Axial fan ASB09238B12S201-TBCcooling12VDChigh-pressure
Add to favorites
Compare this product
Characteristics
- Configuration
- axial
- Function
- cooling
- Supply voltage
- 12VDC
- Other characteristics
- high-pressure
- Air flow
Min.: 307.47 m³/h
(10,858.201 ft³/h)Max.: 307.47 m³/h
(10,858.201 ft³/h)- Rotational speed
Min.: 14,000 rpm
(87,965 rad.min-1)Max.: 14,000 rpm
(87,965 rad.min-1)- Noise level
Min.: 72 dB
Max.: 72 dB
Description
Product overview
DC axial fan 92×92×38 mm ASB09238B12S201-TBC provides stable airflow and high static pressure for cooling power supplies, industrial automation equipment and electronic enclosures.
Key features
Technical specifications
DC axial fan 92×92×38 mm ASB09238B12S201-TBC provides stable airflow and high static pressure for cooling power supplies, industrial automation equipment and electronic enclosures.
Key features
- Rated voltage: 12 VDC
- Dimensions: 92×92×38 mm
- Speed: 14,000 RPM
- Air flow: 180.97 CFM
- Static pressure: 3.66 in H2O
- Noise level: 72 dB(A)
- Bearing type: ball bearing
- Cable: 4-core, 300 mm
Technical specifications
- Type: DC axial fan
- Model: ASB09238B12S201-TBC
- Dimensions (L×W×H): 92×92×38 mm
- Rated voltage: 12 VDC
- Operating voltage range: 7–13.2 VDC
- Rated current: 5.2 A
- Power consumption: 62.4 W
- Speed: 14,000 RPM
- Air flow: 180.97 CFM
- Static pressure: 3.66 in H2O
- Noise level: 72 dB(A)
- Bearing type: ball bearing
- Cable: 4L, 300 mm
