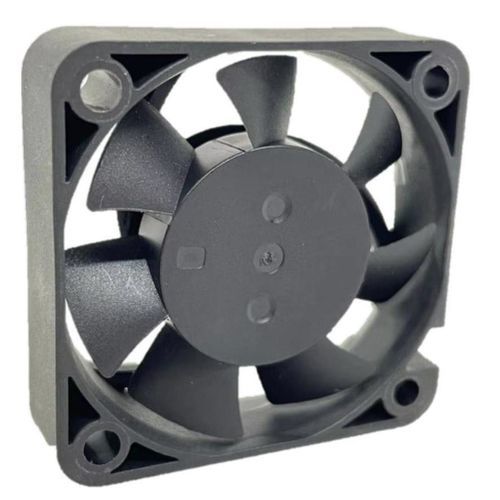

Axial electronic fan Axial fan DC 40x10mm 5V AGE04010B05M046-TBCcoolingfor air circulationDC
Add to favorites
Compare this product
Characteristics
- Configuration
- axial
- Function
- cooling, for air circulation
- Supply voltage
- DC, 5VDC, 4.5VDC
- Drive mechanism
- electrically-powered
- Other characteristics
- low-noise, compact, high-speed
- Air flow
Min.: 12.3 m³/h
(434.37 ft³/h)Max.: 12.3 m³/h
(434.37 ft³/h)
Description
Overview
DC axial fan AGE04010B05M046-TBC provides stable airflow and efficient heat dissipation for power supplies, automation systems and electronic enclosures. Designed for continuous operation with low noise and compact dimensions.
Key features
Technical specifications
Applications
DC axial fan AGE04010B05M046-TBC provides stable airflow and efficient heat dissipation for power supplies, automation systems and electronic enclosures. Designed for continuous operation with low noise and compact dimensions.
Key features
- Voltage: 5V
- Dimensions: 40×10 mm
- Ball bearing
- Noise level: 26 dB(A)
- Speed: 6000 RPM
Technical specifications
- Type: DC axial fan
- Dimensions (L×W×H): 40×40×10 mm
- Operating Voltage Range: 4.5-5.5 VDC
- Rated Current: 0.1 A
- Power Consumption: 0.5 W
- Speed: 6000 RPM
- Air Flow: 7.24 CFM (≈205 L/min)
- Static Pressure: 0.11 in H2O
- Noise Level: 26 dB(A)
- Bearing Type: Ball bearing
- Cable: 2L 300 mm
- Article Number: AGE04010B05M046-TBC
- Manufacturer Code: AGE04010B05x
Applications
- Power supplies
- Automation equipment
- Electronic enclosures
