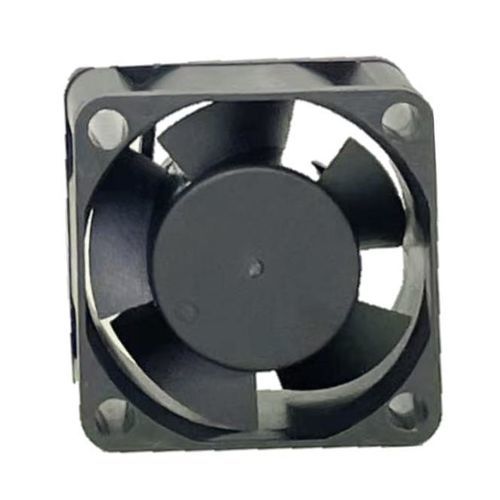

Axial electrical cabinet fan Axial fan DC 40x20mm 24V AGS04020F24L706 -TBC

coolingDC24VDC

Axial fan for compact industrial cooling, engineered to deliver stable airflow and efficient heat dissipation for power supplies, automation systems and electronic enclosures. Compact 40×40×20 mm form factor suitable for space-constrained assemblies; specified for low noise and wide operating voltage range.

Product highlights

• Compact 40×40×20 mm size for industrial and electronic cooling applications
• Low-noise operation (24 dB(A)) for control cabinets and sensitive electronics
• Wide operating voltage range and low power consumption for reliable continuous operation
• Hydraulic bearing for extended service life and reduced vibration

Characteristics / Technical specifications

• Type: DC axial fan
• Dimensions (L×W×H): 40×40×20 mm
• Rated Voltage: 24 V DC
• Operating Voltage Range: 14 - 26.4 V DC
• Rated Current: 0.07 A
• Power Consumption: 1.68 W
• Speed: 5000 RPM
• Air Flow: 7.4 CFM
• Static Pressure: 0.19 inch H2O
• Noise Level: 24 dB(A)
• Bearing Type: Hydraulic bearing
• Cable: 2L, 300 mm
• Article Number: AGS04020F24L706 -TBC
• Manufacturer Code: AGS04020F24x

Applications and mounting

• Cooling of power supplies, inverters, PLCs and electronic control enclosures
• Panel or chassis mounting in confined spaces (40×40×20 mm footprint)
• Suitable for equipment requiring continuous operation and stable airflow

Ordering information

• Refer to Article Number AGS04020F24L706 -TBC and Manufacturer Code AGS04020F24x when requesting quotes or stock information
• Contact your supplier for availability, packaging and lead times
