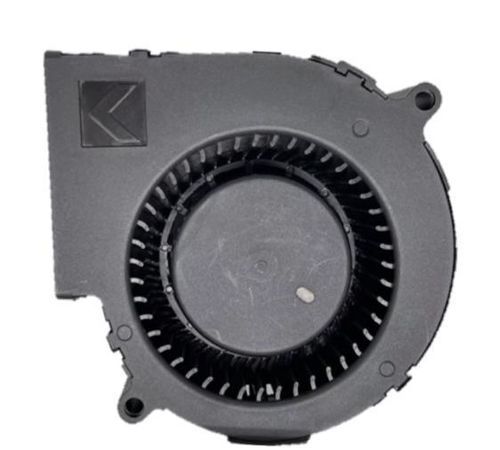

Air blower BGF09733B24W720radialfor ventilation24VDC
Add to favorites
Compare this product
Characteristics
- Type
- air
- Technology
- radial
- Applications
- for ventilation
- Voltage / frequency
- 24VDC
- Other characteristics
- high-pressure, compact
- Flow
Max.: 77.45 m³/h
(2,735.121 ft³/h)Min.: 77.45 m³/h
(2,735.121 ft³/h)- Operating pressure
Max.: 722.358 Pa
(0.105 psi)Min.: 722.358 Pa
(0.105 psi)- Nominal power
Max.: 0.023 kW
(0.031 hp)Min.: 0.023 kW
(0.031 hp)- Length
Max.: 97 mm
(3.82 in)Min.: 97 mm
(3.82 in)- Depth
Max.: 97 mm
(3.8 in)Min.: 97 mm
(3.8 in)- Height
Max.: 33 mm
(1.3 in)Min.: 33 mm
(1.3 in)
Description
Product overview
The DC blower fan BGF09733B24W720 is a compact radial blower (97×97×33 mm) designed to deliver high static-pressure airflow for power supplies, electronic enclosures and industrial automation cabinets. Rated 24VDC, it balances airflow and pressure for forced cooling in constrained installations.
Key features
Technical specifications
The DC blower fan BGF09733B24W720 is a compact radial blower (97×97×33 mm) designed to deliver high static-pressure airflow for power supplies, electronic enclosures and industrial automation cabinets. Rated 24VDC, it balances airflow and pressure for forced cooling in constrained installations.
Key features
- Rated voltage: 24 VDC
- Dimensions: 97×97×33 mm
- Speed: 5000 RPM
- Airflow: 45.6 CFM
- Static pressure: 2.9 inch H2O
- Noise level: 63 dB(A)
- Power consumption: 22.8 W
- Rated current: 0.95 A
- Bearing type: Ball bearing
- Cable: 4‑wire, 300 mm
- Operating voltage range: 14–26.4 VDC
Technical specifications
- Type — DC blower fan
- Dimensions (L×W×H) — 97×97×33 mm
- Rated voltage — 24 VDC
- Operating voltage range — 14–26.4 VDC
- Rated current — 0.95 A
- Power consumption — 22.8 W
- Speed — 5000 RPM
- Airflow — 45.6 CFM
- Static pressure — 2.9 inch H2O
- Noise level — 63 dB(A)
- Bearing type — Ball bearing
- Cable — 4L, 300 mm
