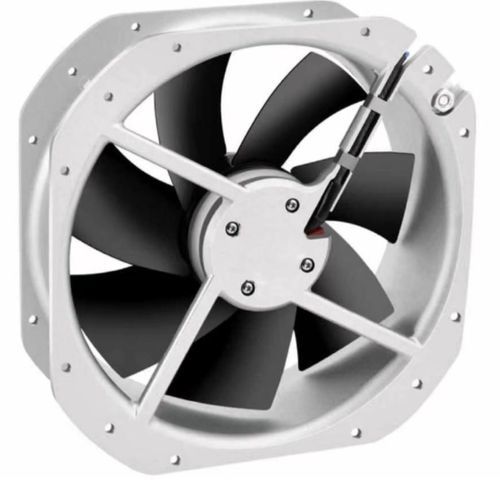

High-flow fan IGE28080B2H-TBCaxialventilationcooling
Add to favorites
Compare this product
Characteristics
- Type
- high-flow
- Configuration
- axial
- Function
- ventilation, cooling
- Supply voltage
- 230VAC
- Drive mechanism
- electrically-powered
- Applications
- for industrial applications
- Air flow
Max.: 1,970.852 m³/h
(69,599.967 ft³/h)Min.: 1,865.513 m³/h
(65,879.969 ft³/h)- Diameter
280 mm
(11.024 in)- Rotational speed
Max.: 2,700 rpm
(16,965 rad.min-1)Min.: 2,500 rpm
(15,708 rad.min-1)- Noise level
Max.: 73 dB
Min.: 70 dB
Description
Product description
Axial fan AC 280×280×80 mm 230V IGE28080B2H-TBC provides stable high-volume airflow and reliable heat dissipation for power supplies, automation equipment and electronic enclosures. Designed for continuous operation with ball bearings to reduce vibration and extend service life.
Specifications
Technical data sheets
AC - 28080 - IGE.pdf
Technical characteristics
Axial fan AC 280×280×80 mm 230V IGE28080B2H-TBC provides stable high-volume airflow and reliable heat dissipation for power supplies, automation equipment and electronic enclosures. Designed for continuous operation with ball bearings to reduce vibration and extend service life.
- Rated voltage: 230 V
- Dimensions: 280×280×80 mm
- Application: power supplies, control cabinets, industrial electronics
Specifications
- Type: AC axial fan
- Dimensions (L×W×H): 280×280×80 mm
- Rated voltage: 230 VAC
- Operating voltage range: 230 VAC
- Power consumption: 126/148 W
- Speed: 2500/2700 RPM
- Air flow: 1098/1160 CFM
- Static pressure: 0.76/0.83 inch H2O
- Noise level: 70/73 dB(A)
- Bearing type: Ball bearing
- Cable: 2-core, 300 mm
Technical data sheets
AC - 28080 - IGE.pdf
Technical characteristics
- Article Number: IGE28080B2H-TBC
- Manufacturer Code: IGE28080B2x
- Type: AC axial fan
- Dimensions (L×W×H): 280×280×80 mm
- Rated Voltage: 230 VAC
- Operating Voltage Range: 230 VAC
- Power Consumption: 126/148 W
- Speed: 2500/2700 RPM
- Air Flow: 1098/1160 CFM
- Static Pressure: 0.76/0.83 inch H2O
- Noise Level: 70/73 dB(A)
- Bearing Type: Ball bearing
- Cable: 2-core, 300 mm
- Price (excl. tax): 150.00 EUR
Catalogs
No catalogs are available for this product.
See all of TPS Elektronik GmbH‘s catalogsOther TPS Elektronik GmbH products
