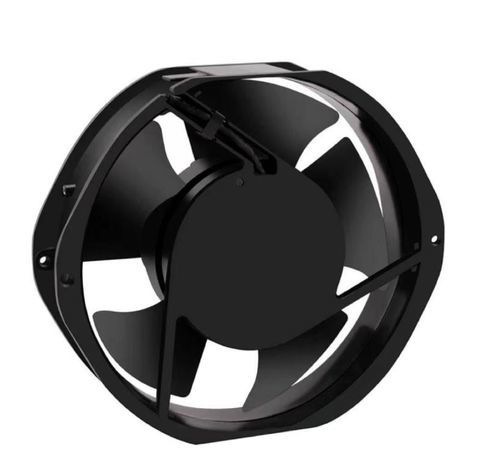

High-flow fan IGE17238B2H001-TBCaxialcooling230VAC
Add to favorites
Compare this product
Characteristics
- Type
- high-flow
- Configuration
- axial
- Function
- cooling
- Supply voltage
- 230VAC
- Drive mechanism
- electrically-powered
- Air flow
Max.: 271.84 m³/h
(9,599.939 ft³/h)Min.: 246.36 m³/h
(8,700.121 ft³/h)- Diameter
Max.: 172 mm
(6.772 in)Min.: 172 mm
(6.772 in)- Rotational speed
Max.: 2,500 rpm
(15,708 rad.min-1)Min.: 2,300 rpm
(14,451 rad.min-1)- Noise level
Max.: 55 dB
Min.: 51 dB
Description
Product overview
Axial fan AC 172×38 mm 230V IGE17238B2H001-TBC provides stable airflow and efficient heat dissipation for power supplies, control cabinets, switchgear and electronic enclosures. Designed for continuous operation with ball bearings and a 300 mm cable for straightforward integration.
Main features
Technical specifications
Axial fan AC 172×38 mm 230V IGE17238B2H001-TBC provides stable airflow and efficient heat dissipation for power supplies, control cabinets, switchgear and electronic enclosures. Designed for continuous operation with ball bearings and a 300 mm cable for straightforward integration.
Main features
- Rated voltage: 230 VAC
- Size: 172×172×38 mm (frame 172×38 mm)
- Speed: 2300 / 2500 RPM
- Airflow: 145 / 160 CFM
- Noise level: 51 / 55 dB(A)
Technical specifications
- Type: AC axial fan
- Dimensions (L×W×H)(mm): 172×172×38
- Rated voltage: 230 VAC
- Operating voltage range: 230 VAC
- Power consumption: 32 / 36 W
- Speed: 2300 / 2500 RPM
- Air flow: 145 / 160 CFM
- Static pressure: 0.53 / 0.58 inch H2O
- Noise level: 51 / 55 dB(A)
- Bearing type: Ball bearing
- Cable: 2-core, 300 mm
