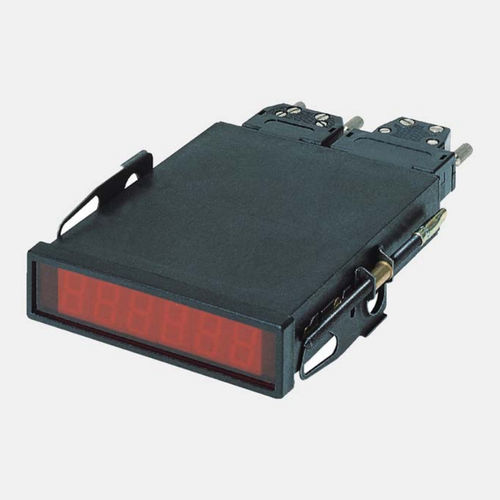

Programmable display 485-00001

LED6-digit7-segment

TR-Electronic's range of accessories for linear encoders includes electrical and mechanical products for every requirement: From SSI parallel converters for the transfer of absolute position and cam information from SSi into parallel output signals via double terminations for linear absolute position measuring systems in aluminium profile housings to data light barriers for field bus transmission over up to 200 meters. Naturally all accessories offer the same precision, quality and durability as all of our linear encoders – precisely what you would expect from TR-Electronic. General characteristic data Operating voltage......................................................11-27 V DC, 5% residual ripple Programming over RS485.........................................PC-100, programming terminal PT-100-N Baud rate...................................................................4800 baud Input current (without load) .......................................0,15 A Data transmission .....................................................asynchronous-serial Display ......................................................................7-segment LED, 6-digit, 16mm high Standard case...........................................................impact-resistant plastic Overall BxHxD...........................................................96 mm x 24 mm x 124 mm without connector Mounting dimensions front panel (mm).....................92,5mm x 21mm x 167mm with connector, thickness of front panel max.
