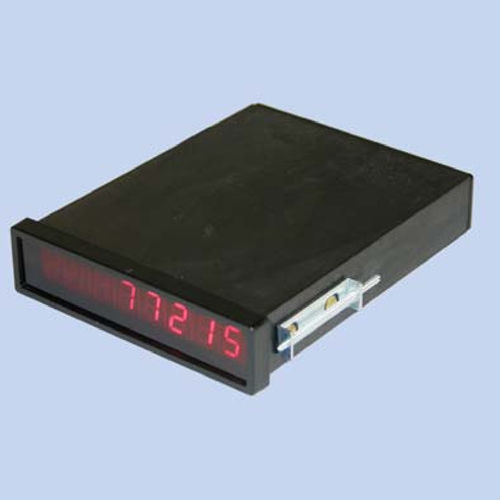

LED display 485-80020

8-digit7-segmentpanel-mount

TR-Electronic's range of accessories for linear encoders includes electrical and mechanical products for every requirement: From SSI parallel converters for the transfer of absolute position and cam information from SSi into parallel output signals via double terminations for linear absolute position measuring systems in aluminium profile housings to data light barriers for field bus transmission over up to 200 meters. Naturally all accessories offer the same precision, quality and durability as all of our linear encoders – precisely what you would expect from TR-Electronic. • 8-digit Master/Slave display unit for front panel mounting • Programmable via the USB interface and PC user program TRWinProg • Integrated SSI interface, switchable as SSI Master, SSI Slave and Monitor operation • Device connection for the protocols TRWinProg, EprogW32, LTProg and LLB • Cascading of several slave displays Characteristics Supply voltage........................................................................ 11…30 V DC Current consumption without load ......................................... 20 μs Programming of the display - USB interface ................................................................ PC user program TRWinProg, WINDOWS® compatible - Alternative via RS485 .................................................... by means of the USB/RS485 PC adapter and TRWinProg Display parameter 1) - Decimal point ................................................................. Point shifting 0…7 digits - Leading zeros ................................................................ visible/not visible
